Mike the owner of the guitar, dropped it off with all the bits. The guitar was already painted red and had a couple of white lines on it, and we did the rest…

This is a 7 sting with a set through neck and active Seymour Duncan Blackout pickups.

Yep, it a real beast of a guitar.

Breakdown of project

  • The white lines had to be touched up
  • We then painted additional black and white lines on by hand to match the ones on there, giving it a relic type of thing like the original. (no good having neat symmetrical lines as it would look all wrong)
  • Painted the headstock with matching type lines.
  • Lacquered the headstock face and entire body (not the neck).
  • Cleaned frets and the fretboard.
  • Drilled out tuner holes and fitted tuners.
  • Fitted locking strap buttons.
  • Drilled out bridge post holes and fitted bridge posts and bridge.
  • Fitted pickups and threaded wiring through to the backend.
  • Installed pots, mega switch and battery
  • Soldered everything up including capacitor.
  • Fitted chrome jack socket surround and finished soldering.
  • Tested electrics.
  • Fitted control knobs and switch button.
  • Made 2 covers for the back and a truss rod cover.
  • Fitted strings.
  • Full setup including, neck, bridge and intonation.
  • Plus loads of other small bits and bobs.

Enjoy it Mike!

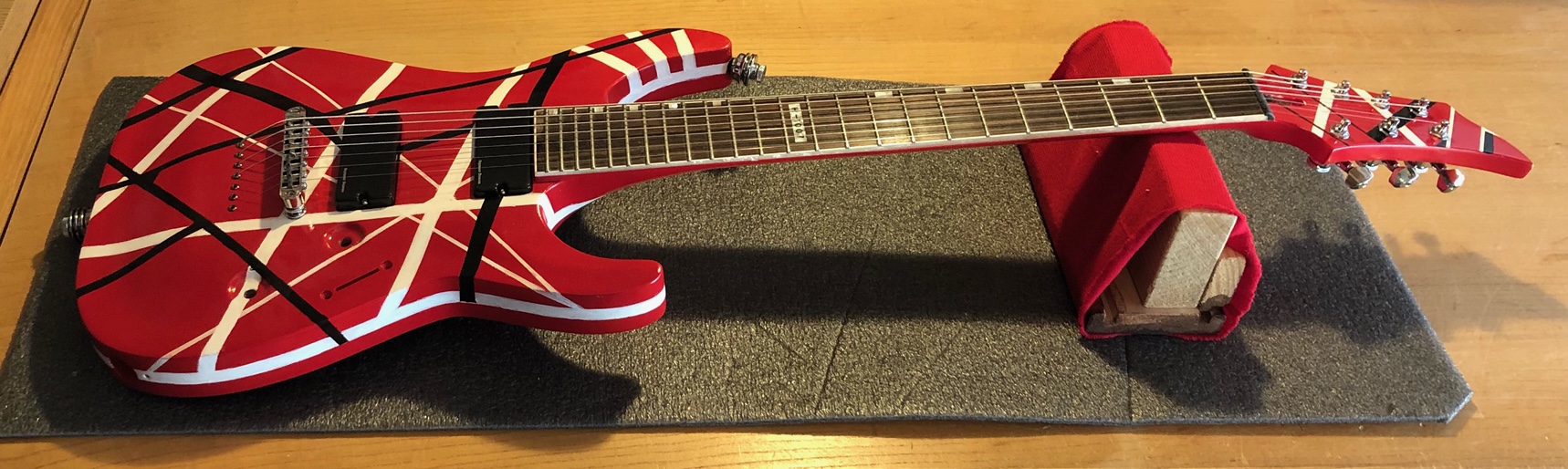

Artwork Done…
Eddie Van Halen Tribute Guitar, EVH Tribute Guitar Project

Just the electrics to go…EVH Guitar Project Build
