Support / Left Handed Gibson & Epiphone Wiring Diagrams & Fitting Instructions
Please find a list below of Left Handed Gibson & Epiphone Wiring Diagrams and fitting instructions for our wiring harnesses which include popular guitar makes and models. These guitar wiring diagrams are listed for our customers and anyone taking on a wiring project on their guitar. These Left Handed Gibson & Epiphone Wiring Diagrams are completely free to use, however they are not to be sold as they are the property of AxeKool Guitars.
If you like and use our FREE Left Handed Gibson & Epiphone Wiring Diagrams and would like to show your appreciation, please buy our team a coffee, thank you.
Gibson & Epiphone Left Handed Hollowbody Models
Gibson & Epiphone Hollowbody Guitars Left Handed Wiring Diagram
Including: L-5, ES-135, ES-175, ES-275, ES-330, ES-335, ES-339, & ES-355, Byrdland.
2 x Humbuckers / P90’s, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
Gibson & Epiphone Left Handed Les Paul Models

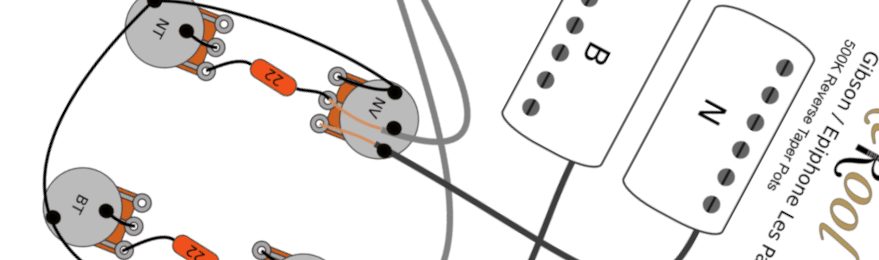

Gibson & Epiphone Les Paul Left Handed Wiring Diagram
2 x Humbuckers / P90’s, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
Gibson & Epiphone Les Paul Junior Left Handed Wiring Diagram
1 x P90, Volume Pot, Tone Pot.
Gibson & Epiphone Peter Frampton 3 Pickups Left Handed Wiring Diagram – Version 1
3 x Humbuckers, 3 x Volume Pots, Tone Pot, 3 Way Toggle Switch.
Gibson & Epiphone Peter Frampton 3 Pickups Left Handed Wiring Diagram – Version 2
3 x Humbuckers, 2 x Volume Pots, 2 x Tone Pot, 3 Way Toggle Switch.
Epiphone Left Handed Hollowbody Models
Epiphone Left Handed Hollowbody Models Wiring Diagrams
Including: Casino, Dot, Emperor, Broadway, Sheraton, Riviera,
2 x Humbuckers / P90’s, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
Epiphone Left Handed Les Paul Models
Epiphone Les Paul Special II Left Handed Wiring Diagram
2 x Humbuckers / P90’s, 1 x Volume Pots, 1 x Tone Pots, 3 Way Toggle Switch.
Gibson & Epiphone Left Handed SG Models
Gibson & Epiphone SG Left Handed Wiring Diagram
2 x Humbuckers / P90’s, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
Gibson & Epiphone SG Custom 3 Pickups Left Handed Wiring Diagram
3 x Humbuckers, 3 x Volume Pots, 1 x Tone Pot, 3 Way Toggle Switch.
Gibson & Epiphone SG Junior Left Handed Wiring Diagram
1 x P90, Volume Pot, Tone Pot.
Gibson Left Handed Sonex
Gibson Sonex Left Handed Wiring Diagram
2 x Humbuckers, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
Gibson & Epiphone Left Handed Explorer
Gibson & Epiphone Explorer Left Handed Wiring Diagram
2 x Humbuckers, 2 x Volume Pots, Tone Pot, 3 Way Toggle Switch.
Gibson & Epiphone Left Handed Firebird Models
Gibson & Epiphone Firebird 3 Pickups Left Handed Wiring Diagram
3 x Humbuckers, 3 x Volume Pots, Tone Pot, 3 Way Toggle Switch.
Gibson & Epiphone Firebird Left Handed Wiring Diagram
2 x Humbuckers, 2 x Volume Pots, 2 Tone Pots, 3 Way Toggle Switch.
————
