Archtop Left Handed Vintage Wiring Harness (Humbucker Pickup)

Description

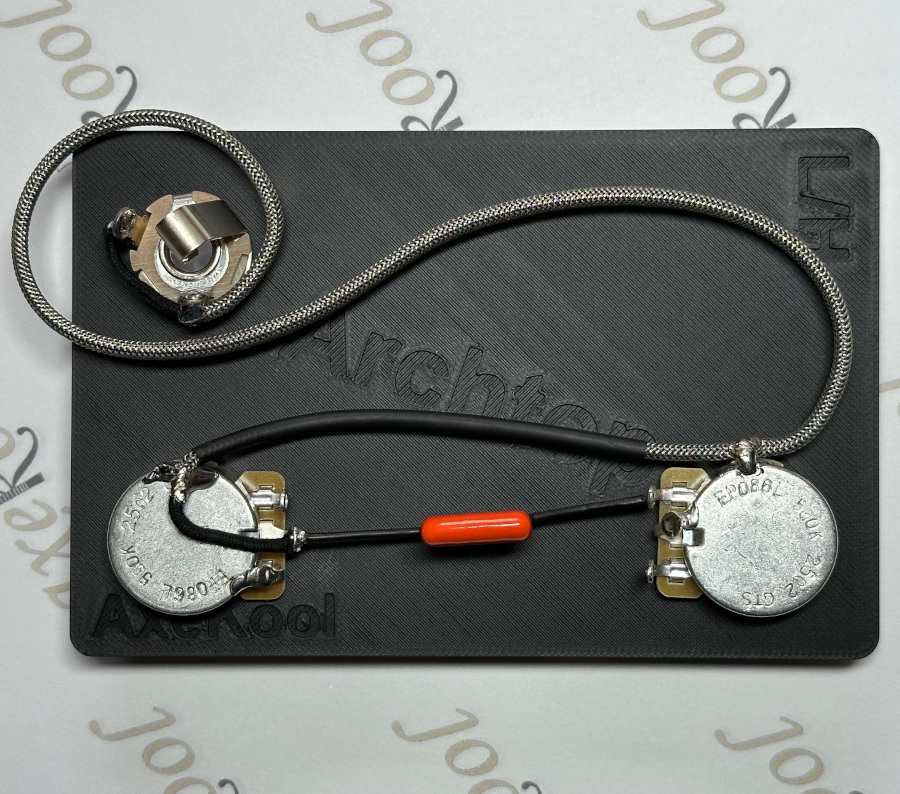

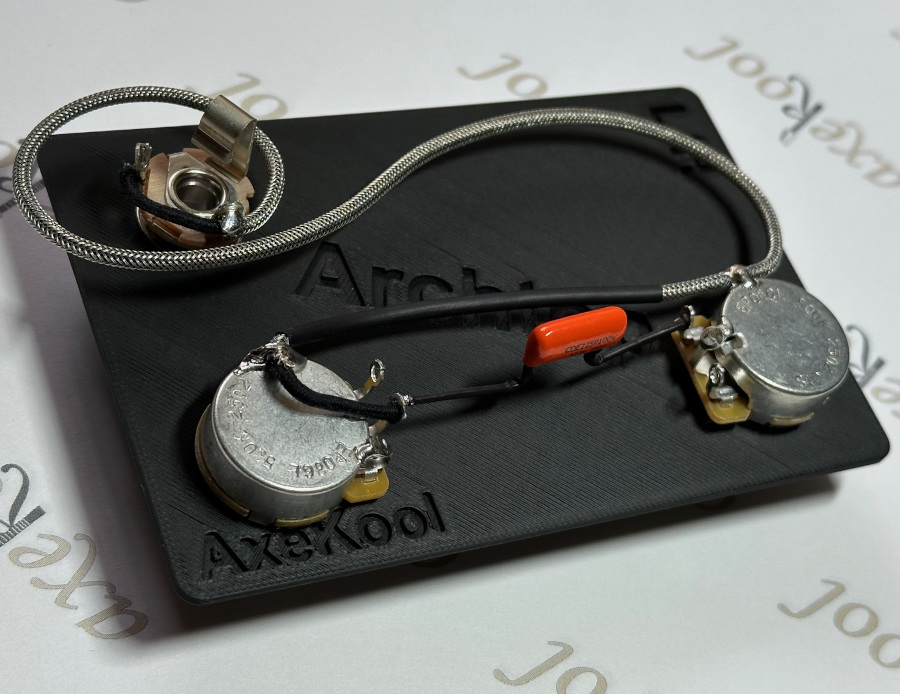

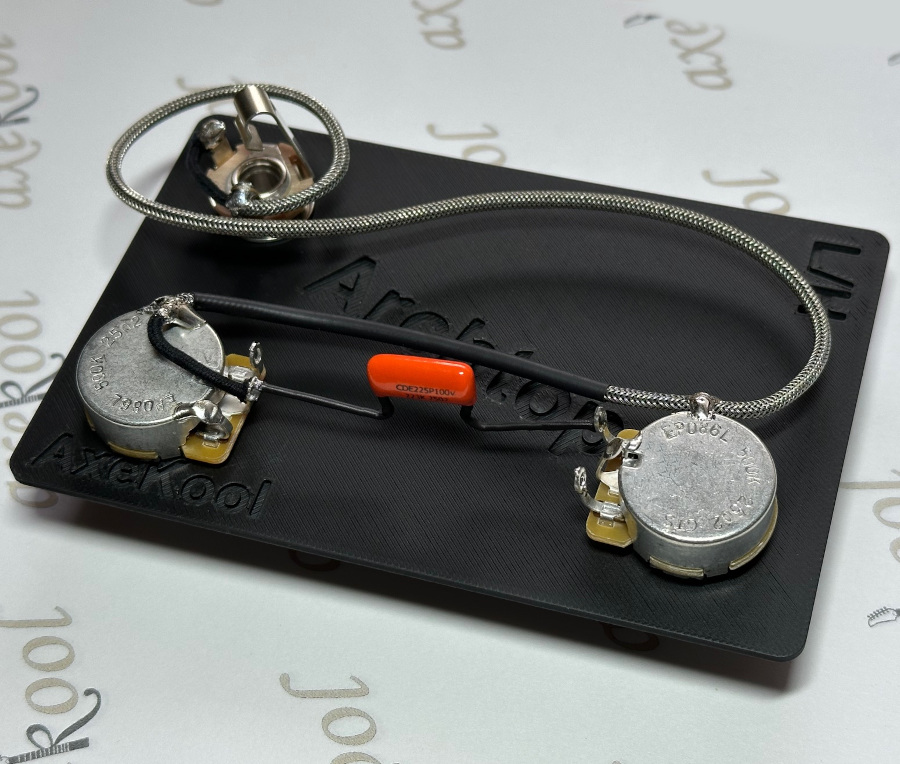

Archtop Left Handed Vintage Wiring Harness (for Humbucker Pickup)

This Pre-Wired Archtop Left Handed Vintage Wiring Harness is designed for fitting new or replacing old electrics or upgrading imported models and DIY Kits. We take a massive amount of care and attention when putting our Archtop Left Handed Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Archtop Left Handed Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components
USA 500k CTS Potentiometers x 2, Standard Shaft, Left Handed / Reverse Taper Split Shaft.
Sprague Orange Drop Capacitor x 1, Size 0.022uF.
Switchcraft USA Jack Socket.
Gavitt USA Braided Wire.
Gavitt USA Cloth Covered Wire.
Mounted on a 3D Printed Wiring Template.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Master Volume 1
Master Tone 1

Will this fit my guitar?
Our Pre-Wired Archtop Left Handed Vintage Wiring harness is wired to fit all models. We have made the Wiring Harness flexible by using Gavitt USA Cloth Covered Wire as the ground between the pots. This will allow you to fit the harness either in the body via the F Holes or to the pickguard as some people choose to. You will need to ensure the CTS Potentiometer holes are 10mm.

Centre to centre measurements between components
Centre of Volume Pot to centre of Tone Pot – 100mm.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Archtop Left Handed Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Archtop Left Handed Vintage Wiring Harness is 48 hours.
