Pre-Wired Kill Switch
£8.95
We build your Pre-Wired Guitar Kill Switch to order.
Mini Momentary Push Button Switch.
Shipping calculated at checkout
- Quality Product.
- Contact us with any questions you have about this item.
Description

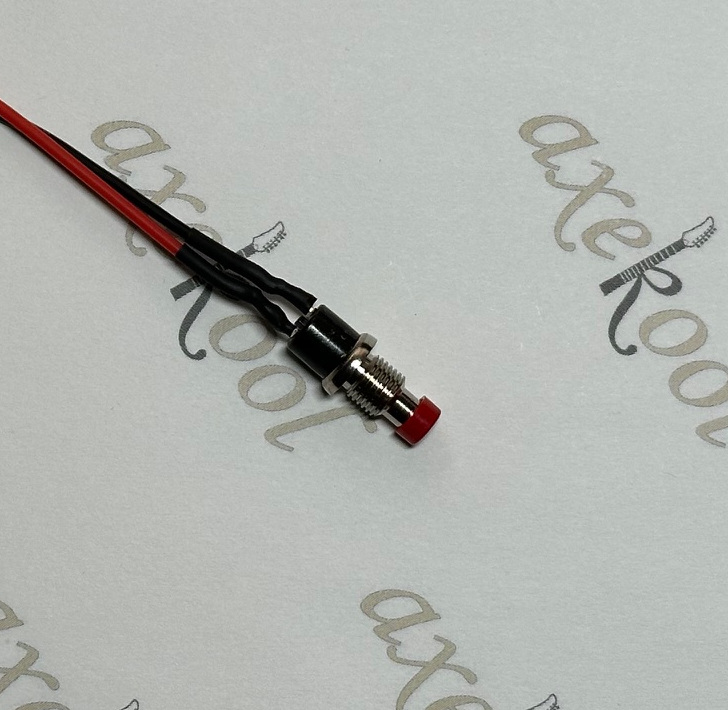

Pre-Wired Guitar Kill Switch
Mini Momentary Push Button Switch
Momentary Off (On) switch.
The Switch is only “On” when the button is pushed down which connects the circuit sending the signal to ground (killing the signal).
This switch can be used with active or passive pickups and is easy to install. The red wire goes to the output jack’s hot terminal, and the black wire goes to ground.
Includes the fixing nut, Locking Washer and 2 x Wires.

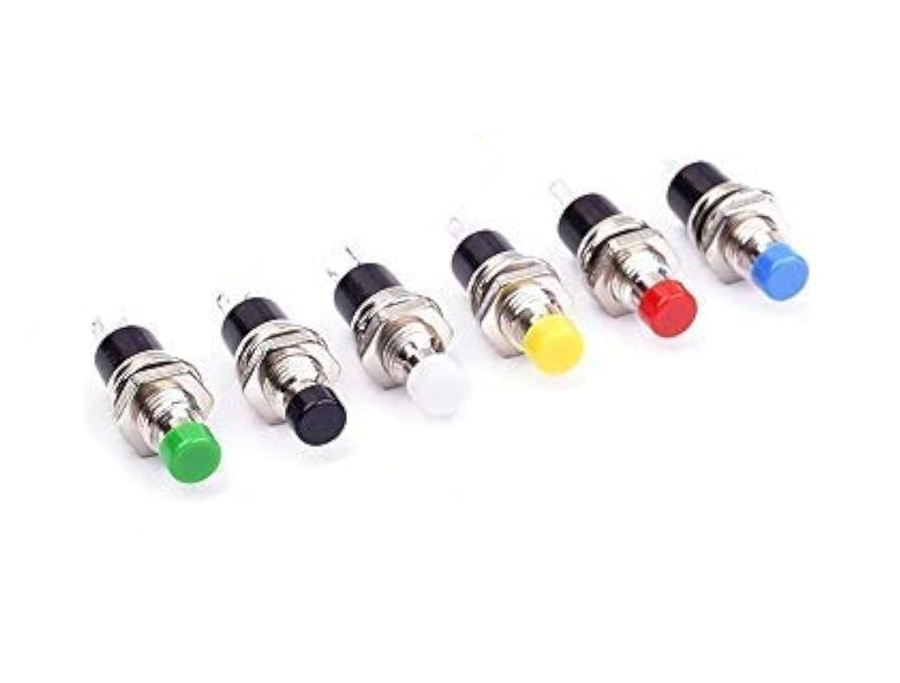

Switch Tip Choices
White, Green, Blue, Black, Red & Yellow

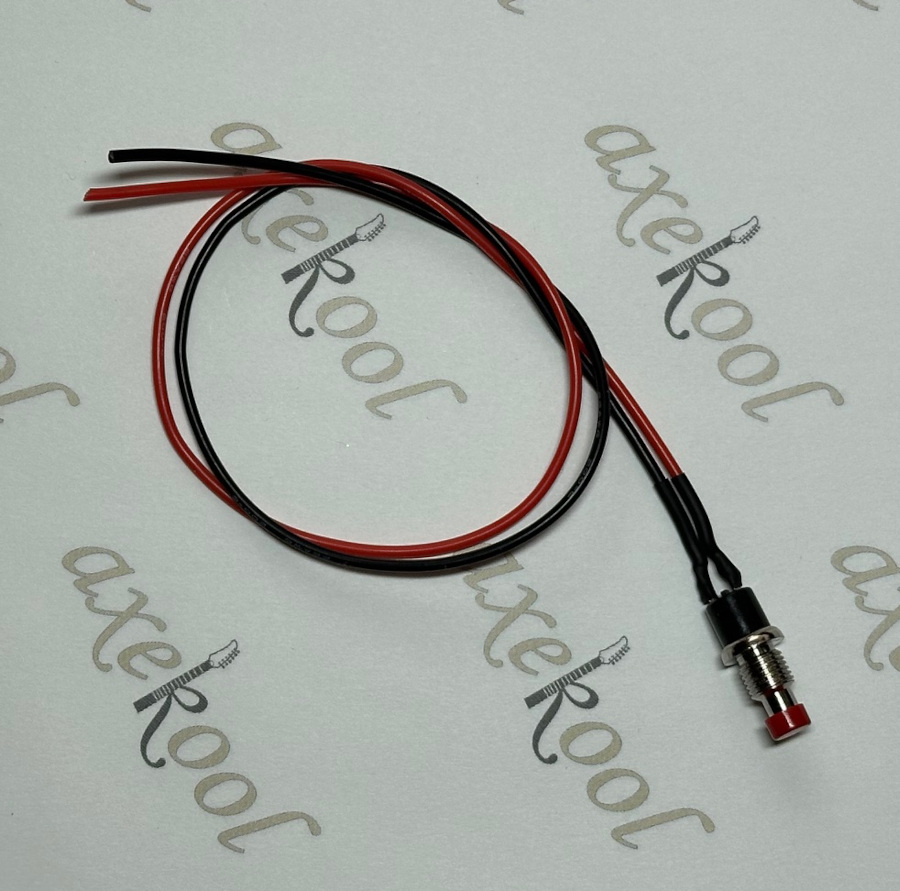

Wires
(Cut to 250mm Lengths)
2 x Shielded Wire

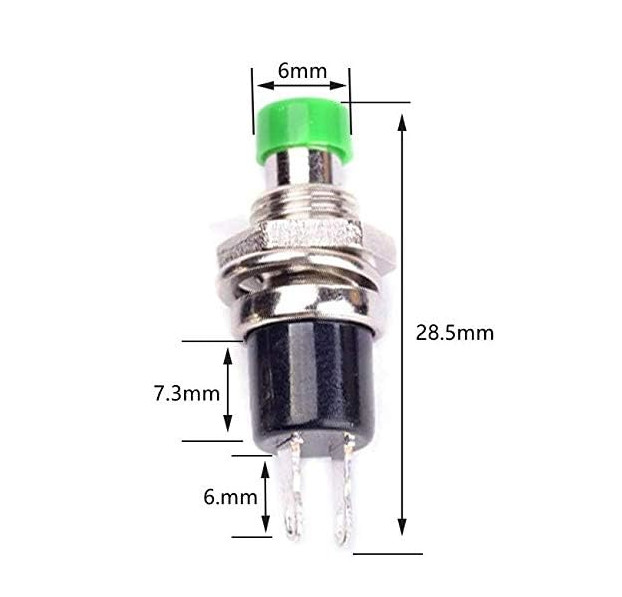

Switch Specifications & Dimensions
Diameter of Thread: 7.2mm/ 0.28in
Action Type: Momentary
Poles: SPST
Terminals: 2 Pins
Rating Voltage: AC 250V/ 1A, 125V/ 3A
Diameter of Thread: 7.2mm/ 0.28in
Diameter of Cap: 6mm/ 0.24in
Pin Pitch: 3.5mm/ 0.13in
Order Times
We make everything to order (and fully tested) and the turnaround time for a Pre-Wired Guitar Kill Switch is 48 hours.
