Yamaha BB1000S Bass Vintage Wiring Harness

Description

Yamaha BB1000S Bass Vintage Wiring Harness

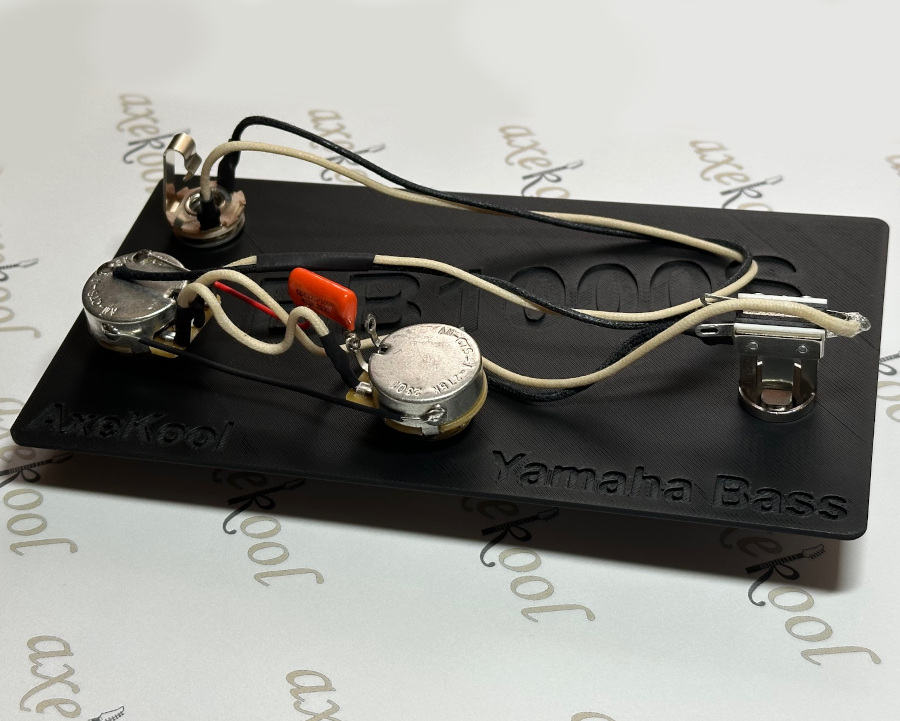

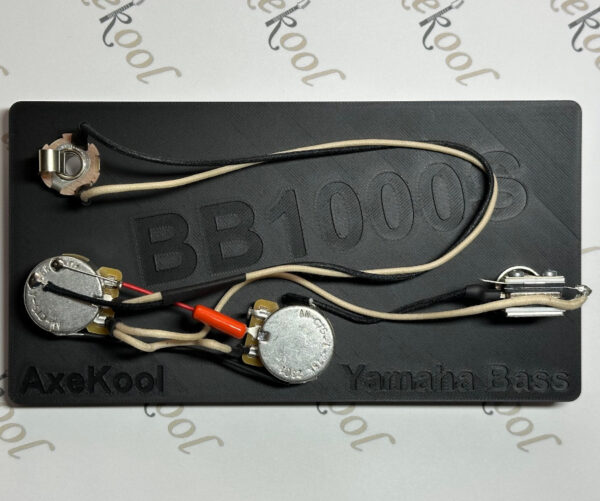

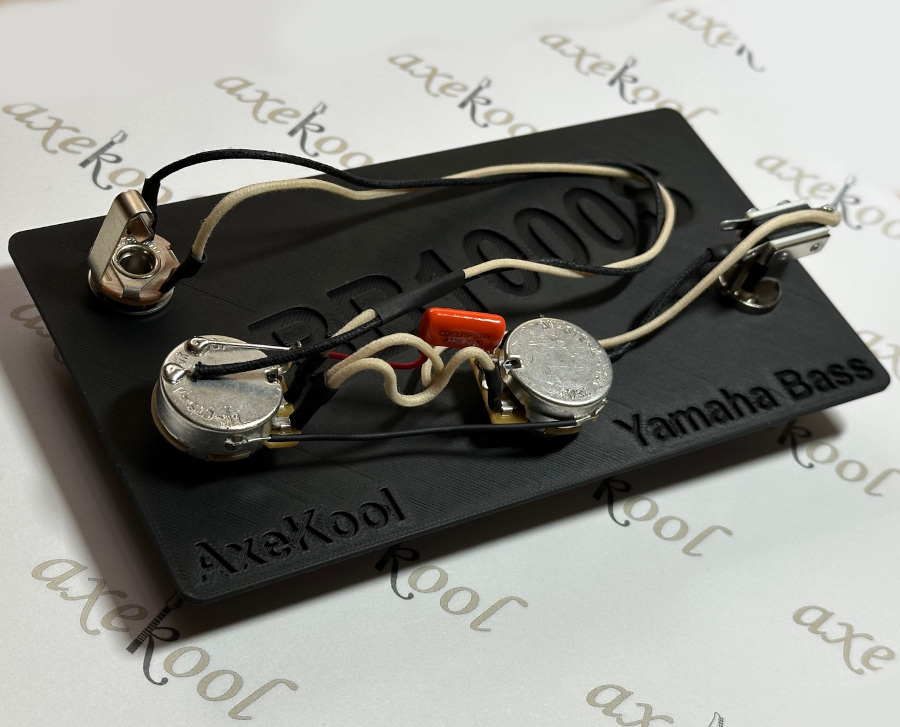

This Pre-wired Yamaha BB1000S Bass Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Yamaha Bass Wiring Harnesses together. Everything is fully tested before being posted to you.

This is a Professional Yamaha Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components

• USA 250k CTS Potentiometers x 2, Standard Length, Split Shafts.
• Switchcraft USA 3 Way Toggle Switch (short frame).
• Switchcraft USA Jack Socket.
• Sprague Orange Drop Capacitor x 1, Size 0.047uF.
• Gavitt USA Braided Wire.
• Heatshrink Insulation Sleeving.
• Mounted on a 3D Printed Wiring Template.
• Jack Socket and Pots supplied with Nut, Flat Dress Washer & Locking Star Washer.

You are welcome to Contact Us with your custom requirements.

Controls
Master Volume.
Master Tone.

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired Yamaha BB1000S Bass Vintage Wiring harness is wired to fit all models. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume Pot to Tone Pot – 70mm.
Centre of Tone Pot to Centre of Switch – 70mm
Measurements can sometimes vary slightly on some Yamaha BB1000S Bass Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

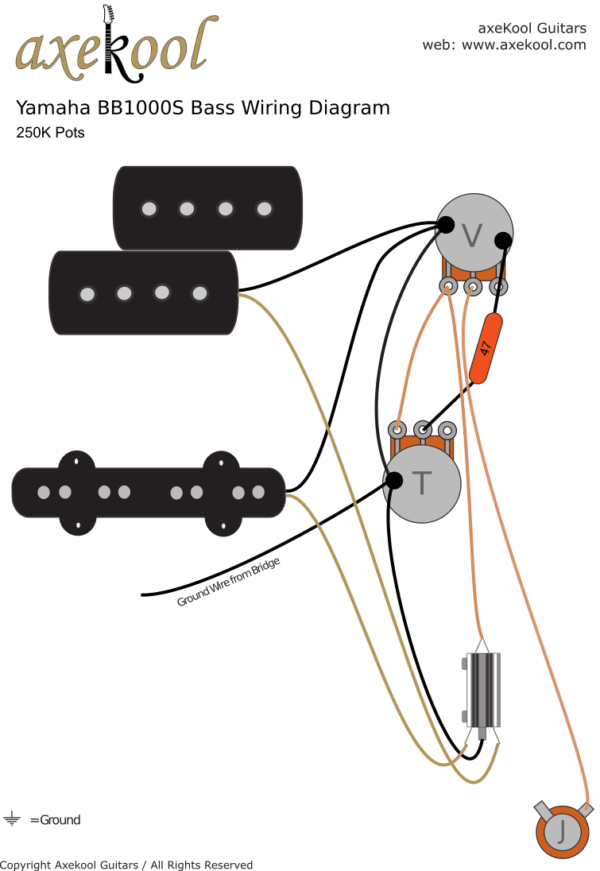

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Yamaha BB1000S Bass Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Yamaha BB1000S Bass Vintage Wiring Harness is 48 hours.
