Yamaha PAC1611MS Mike Stern Wiring Harness

Description

Yamaha Pacifica PAC1611MS Mike Stern Wiring Harness

To fit Humbucker Pickup in Bridge and Hot Rail Pickup in the Neck Configuration with Coil Split on Tone Pot

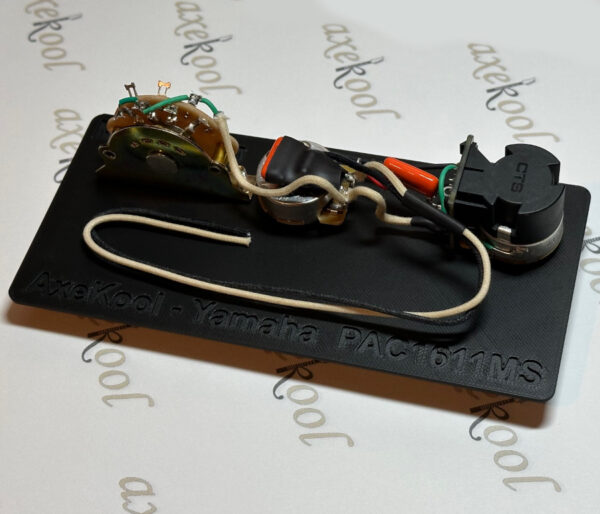

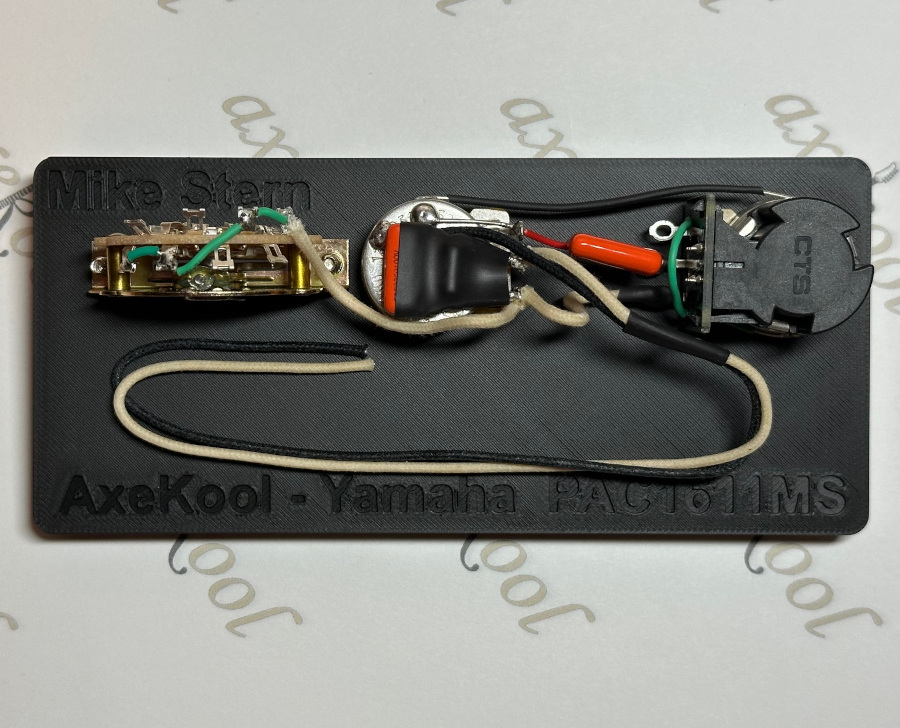

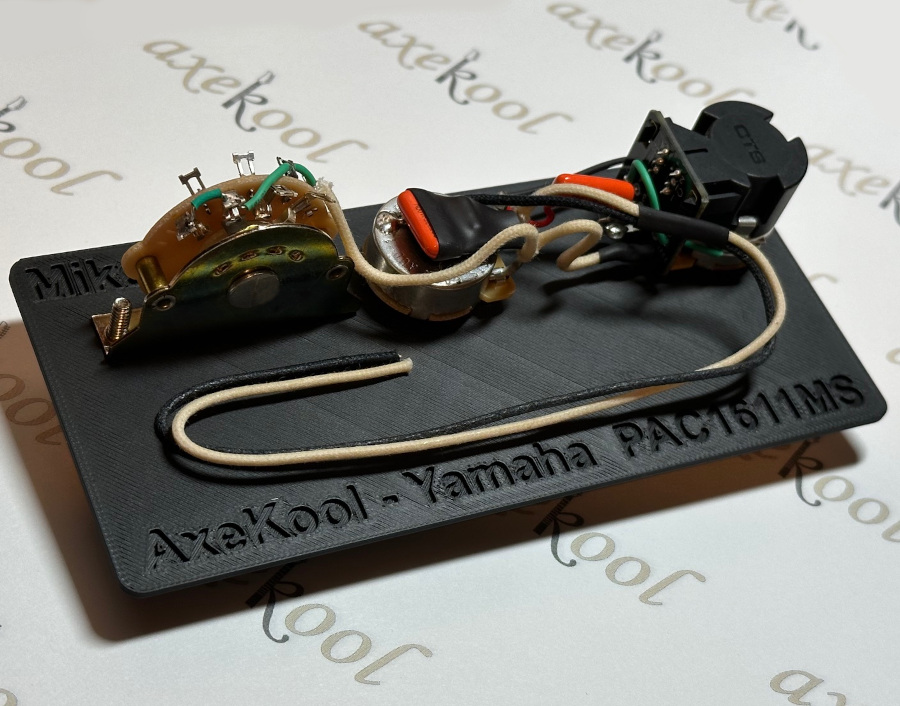

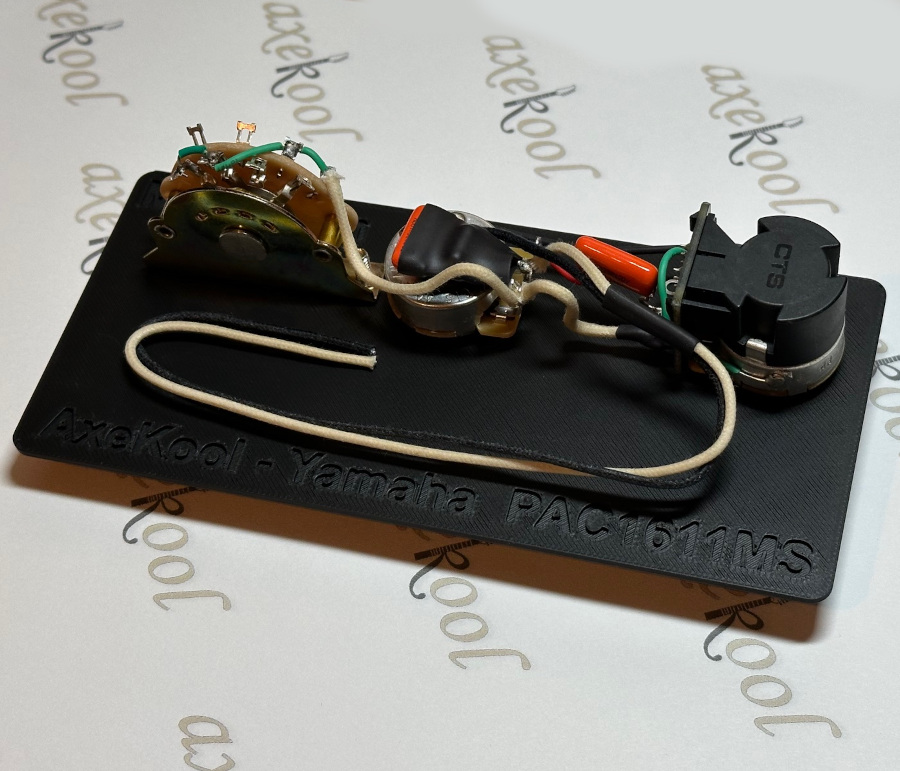

This pre-wired Yamaha Pacifica PAC1611MS Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Yamaha Pacifica PAC1611MS harnesses together. Everything is fully tested before being posted to you.

This is a Professional Yamaha Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components

• USA 500k CTS Potentiometer x 1, Split Shaft.
• USA 500k CTS Push n Pull Potentiometer x 1, Split Shaft.
• Oak Grigsby 3 Way Lever Switch.
• Switchcraft USA Jack Socket.
• Sprague Orange Drop Capacitor x 1, Size 0.022uF.
• Gavitt USA Cloth Covered Wire.
• Tinned Copper “Buss” Ground Wire.
• Heatshrink Insulation Sleeving.
• Mounted on a 3D Printed Wiring Template.
• Jack Socket and Pots supplied with Nut, Flat Dress Washer & Locking Star Washer.

You are welcome to Contact Us with your custom requirements.

Treble Bleed Option
A Treble Bleed takes the high treble tone frequencies out of the circuit at the volume pot and puts them back in the circuit as the signal leaves the volume pot. The result is a smoothed out treble and a more uniform tone from 1 to 10. Reducing the treble drop out as the volume pot rolls off. If you like the idea of retaining treble as you roll your volume pot down, then a treble bleed is for you.

Controls
Volume Control.
Tone – Control / Coil Split.

Switching
Position 1 – Bridge Pickup.
Position 3 – Bridge & Neck Pickup.
Position 5 – Neck Pickup.

Will this fit my guitar?
Our pre-wired Yamaha Pacifica PAC1611MS Wiring harness is wired to fit a genuine Yamaha Pacifica PAC1611MS. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the Pickguard will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot to Switch – 40mm.
Centre of Volume pot to centre of Tone pot – 64mm.
These measurements were taken from a Yamaha Pacifica PAC1611MS

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Yamaha Pacifica PAC1611MS Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Yamaha Pacifica PAC1611MS Wiring Harness is 48 hours.
