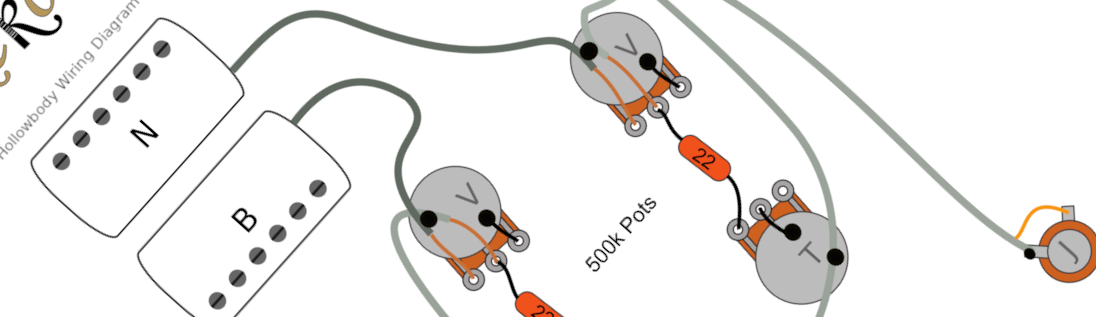

Please find a list below of PRS wiring diagrams and fitting instructions for our PRS wiring harnesses which include popular PRS guitar models. These PRS guitar wiring diagrams are listed for our customers and anyone taking on a wiring project on their guitar. These PRS wiring diagrams are completely free to use, however they are not to be sold as they are the property of AxeKool Guitars.
If you like and use our FREE PRS wiring diagrams and would like to show your appreciation, please buy our team a coffee, thank you.
PRS Models
PRS 2 Pot Vintage Wiring Diagram
2 x Pickups, Volume Pot, Tone Pot, 3 Way Toggle Switch.
PRS 2 Pot Vintage with Coil Split Wiring Diagram
2 x Pickups, Volume Pot, Tone Pot, 3 Way Toggle Switch.
PRS McCarty Wiring Diagram
2 x Pickups, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
PRS McCarty with Coil Split Wiring Diagram
2 x Pickups, 2 x Volume Pots, 2 x Tone Pots, 3 Way Toggle Switch.
PRS DGT Vintage Wiring Diagram
2 x Pickups, 2 x Volume Pots, 1 x Tone Pot, 3 Way Toggle Switch.
PRS DGT Vintage with Coil Split Wiring Diagram
2 x Pickups, 2 x Volume Pots, 1 x Tone Pot with coil split, 3 Way Toggle Switch.
PRS Bernie Marsden Vintage Wiring Diagram
2 x Pickups, 2 x Volume Pots, Tone Pot, 3 Way Toggle Switch.
————
