Support / Yamaha BB1000S Bass Wiring Diagram & Fitting Instructions

Complete Electrical Fitting Instructions

Removal

1. Find somewhere safe, dry and secure to place your Yamaha BB1000S Bass guitar while you work on it.
2. Remove the control knobs x 3.
3. Remove the 3 x pot nuts and washers.
4. Undo the screws that hold the control plate at the back of the guitar.
5. In the control panel, cut the wires from the pickup closest to the pot as possible.
6. Cut the 2 wires from the Jack socket if you are not replacing it.
7. The wiring harness should be free to come out and so should the jack socket.

Replacement

1. At this point you may want to clean pot holes on the front of the guitar from where the old pots have been.
2. You will need to check the size of the holes for the pots as on some guitars they are drilled small for cheap electrical components. If they are small, the best way to enlarge them to 10mm to fit CTS pots, is to use a round file.
3. Fit the new harness into place and tighten the nuts and washers on the pots
4. Fit the jack socket into place with the nut and washer if you are replacing it
5. Solder the pickup wires to the pot (refer to wiring diagram)
6. Solder the ground bridge wire to the back of the pot (refer to wiring diagram)
7. Solder the jack socket wires if you are not replacing it etc
8. Once this is done, you should test to make sure everything is working.
9. You can now replace the control plate cover
10. Re-fit the control knobs.

Tools & Equipment

• Small adjustable spanner/wrench.
• Good quality soldering iron.
• Wire Cutters.
• Masking tape for keeping things in place or out the way while working.

Tips

• When soldering the wires to the back of a pot, do not overheat / cook the pot.
• Keep wires tidy and neat and make sure all components are grounded.

If you like and use our FREE Yamaha BB1000S Bass Wiring Diagram and would like to show your appreciation, please buy our team a coffee, thank you.

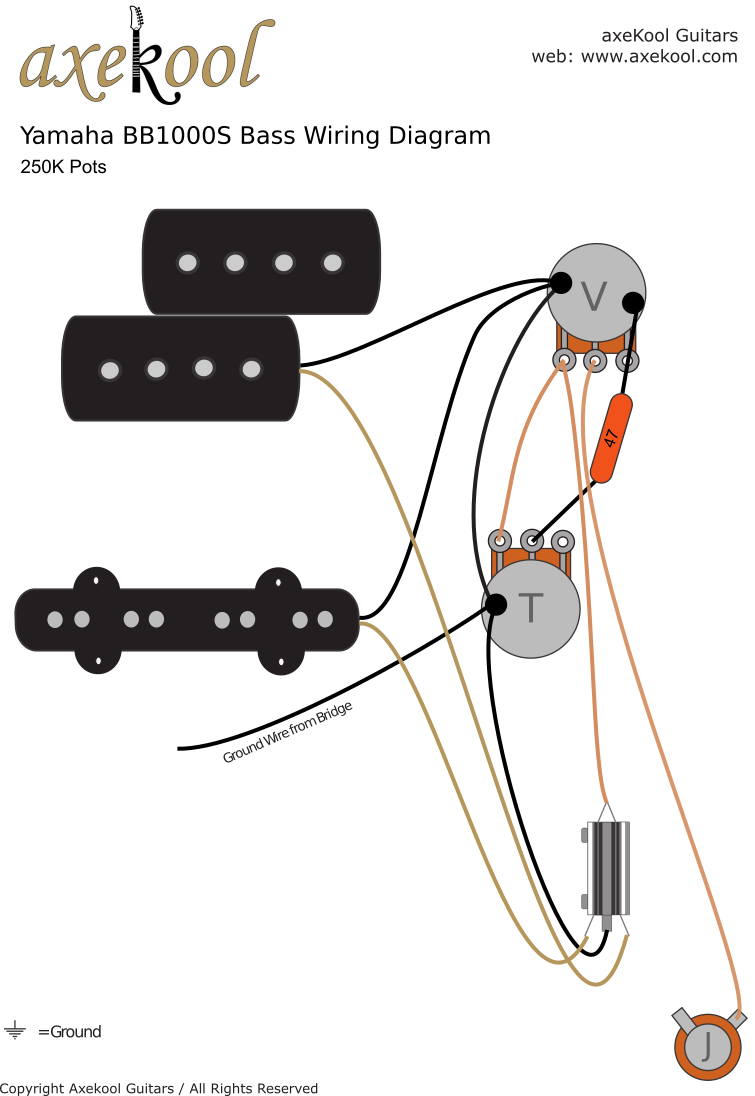

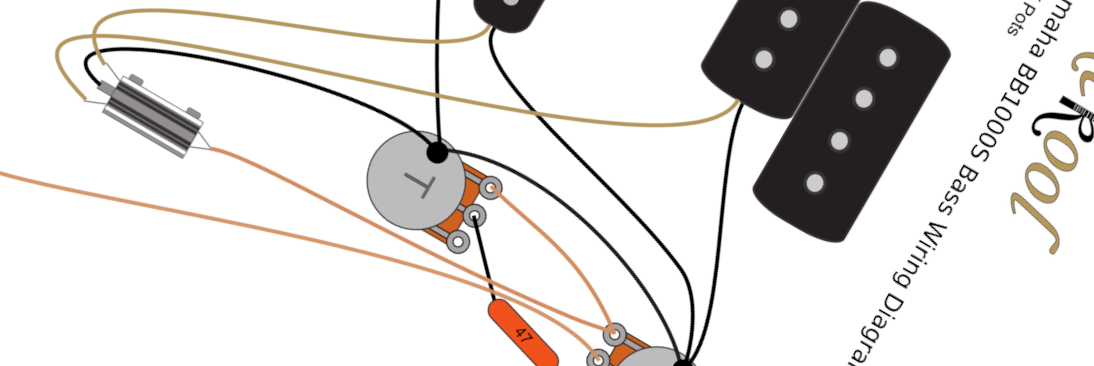

Wiring Diagram

Download the Printable PDF

Yamaha BB1000S Bass Wiring Diagram Bass Vintage Wiring Harness

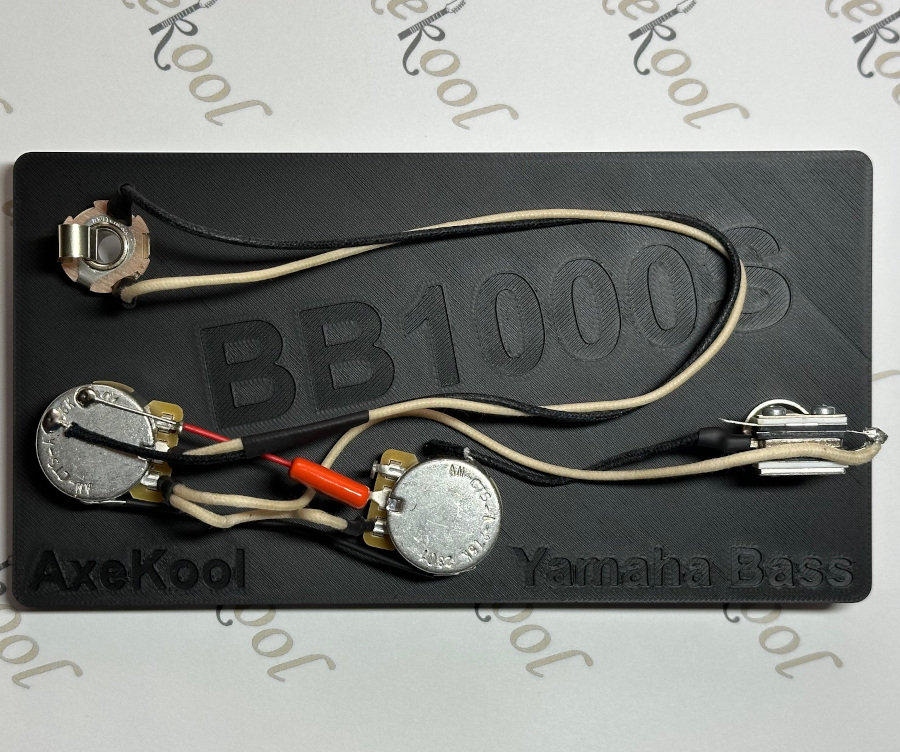

Buy Our Yamaha BB1000S Bass Wiring Diagram Wiring Harness
