2 x Humbuckers, 2 x Volume, 2 x Tone and 1 x 3 Way Toggle Switch

Complete Electrical Fitting Instructions


  1. Find somewhere safe, dry and secure to place your SG guitar while you work on it.
  2. Remove the control knobs x 4 and the switch cap.
  3. Remove the 4 x pot nuts and washers and the nut for the switch.
  4. Undo the screws that hold the control plate and the switch plate at the back of the guitar.
  5. Undo the nut for the jack socket.
  6. In the control panel, cut the pickup wires closest to the pot as possible. A good tip is to label which is the bridge wires
  7. Cut the ground bridge wire at the back of the pot closest to the pot as possible
  8. The wiring harness should be free to come out and so should the jack socket.


  1. At this point you may want to clean pot holes on the front of the guitar from where the old pots have been.
  2. You will need to check the size of the holes for the pots as on some guitars they are drilled small for cheap electrical components. If they are small, the best way to enlarge them to 10mm to fit CTS pots, is to use a round file.
  3. Fit the new harness into place and fit the nuts and washers and secure everything
  4. Solder the 2 pickups wires to the pots (refer to wiring diagram)
  5. Solder the ground bridge wire to the back of the pot (refer to wiring diagram)
  6. Once this is done, you should test to make sure everything is working.
  7. You can now replace the control plate cover
  8. Re-fit the control knobs and the switch cap.

Tools & Equipment

  • Philips (Cross head) Screwdriver.
  • Flat headed screwdriver on some models.
  • Small adjustable spanner/wrench.
  • Good quality soldering iron.
  • Wire Cutters.
  • Masking tape for keeping things in place or out the way while working.


  • When soldering the wires to the back of a pot, do not overheat / cook the pot.
  • Keep wires tidy and neat and make sure all components are grounded.

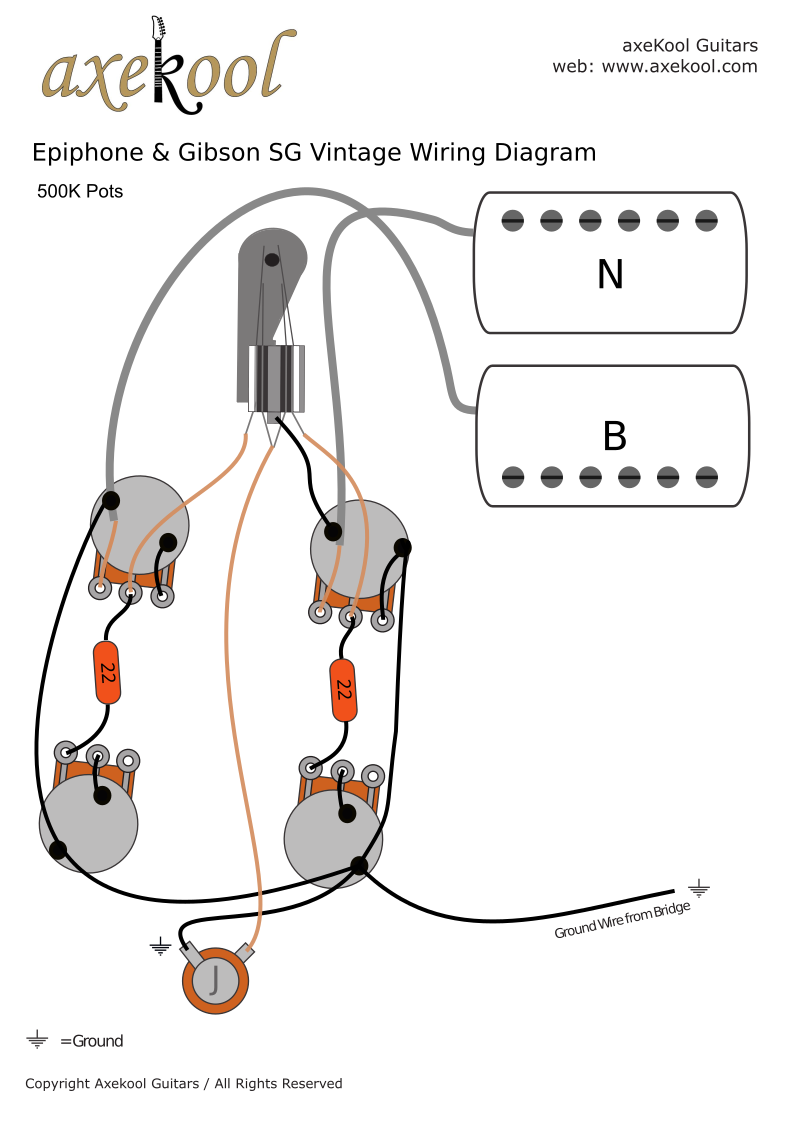

Wiring Diagram
