Gibson & Epiphone SG Vintage Wiring Harness

£87.95£99.95

We build your Gibson & Epiphone SG Vintage Style Wiring Harness to order using the very best fully tested electrical components.

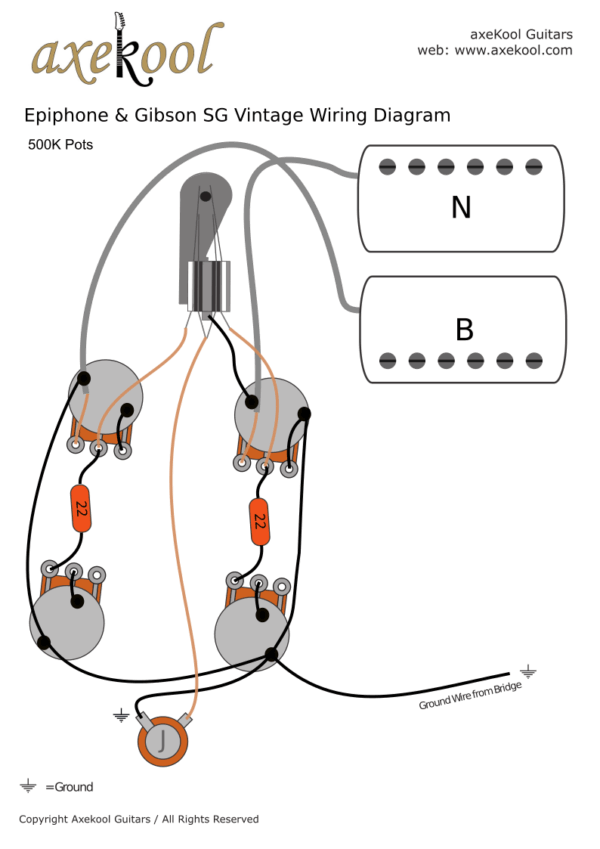

Includes wiring diagram & installation guide.

FREE Post for the UK.
We also ship to the United States, Canada, Ireland, Australia, New Zealand and most of Europe.

Description

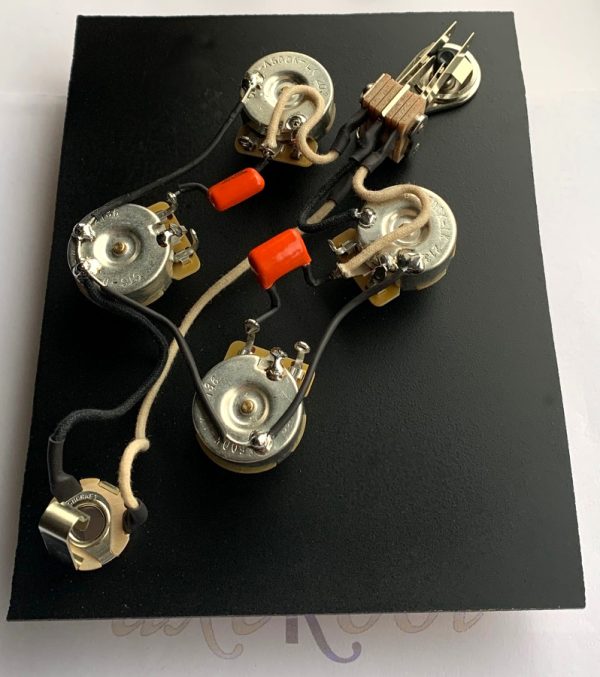

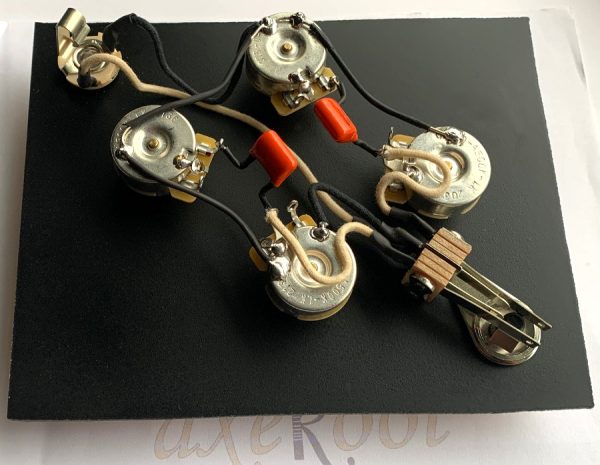

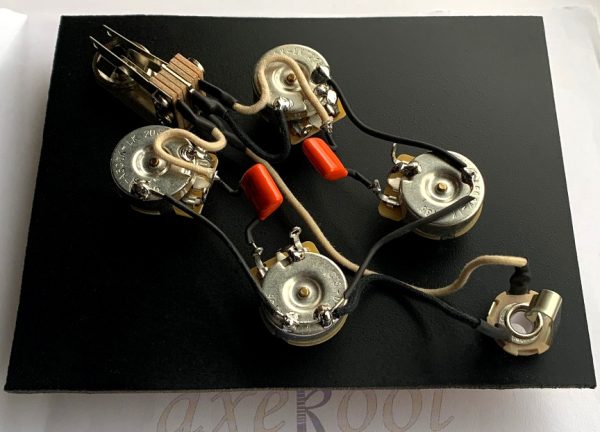

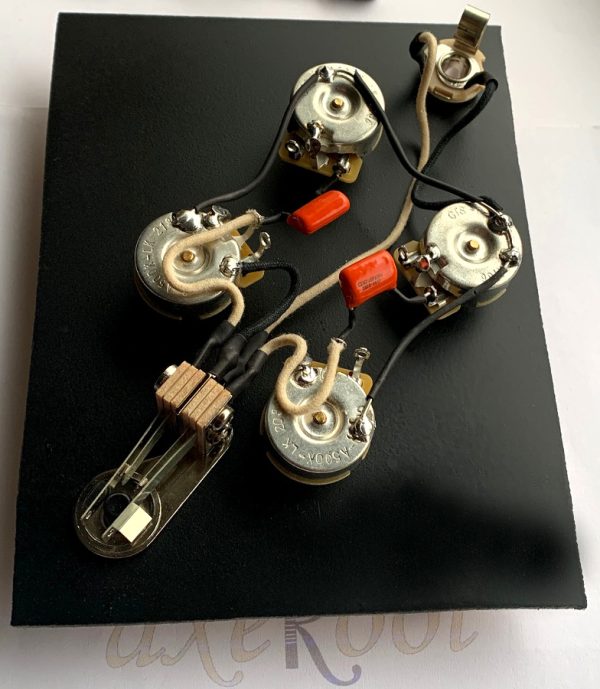

Gibson & Epiphone SG Vintage Style Wiring Harness

This pre-wired Gibson & Epiphone SG Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone SG Vintage harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our SG vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 4, short or long split shaft with vintage audio taper (fitted with additional nut for height adjustment on the long shaft pot).
Switchcraft Right Angle Toggle 3 Way Switch – Choice of switch knob colour is included, Cream, Amber or Black.
Switchcraft USA Jack Socket.
Capacitors x 2, 0.022uF Sprague Orange Drop or PIO Paper in Oil.
Gavitt USA made Shielded / Braided cloth wire.
You are welcome to contact us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Bridge.
Tone 2 – Neck.

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired SG Vintage Wiring harness is wired to fit all models including Gibson & Epiphone guitars. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Switch to neck volume pot – 55mm.
Centre of switch to bridge volume pot – 55mm.
Centre of neck volume pot to centre of neck tone pot – 50mm.
Centre of bridge volume pot to centre of bridge tone pot – 50mm.
Centre of neck volume pot to bridge volume pot – 44mm.
Centre of neck tone pot to bridge tone pot – 44mm.
Centre of neck tone pot to centre of jack socket – 34mm.
Measurements can sometimes vary slightly on some SG Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone SG Vintage Wiring Harness. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone SG Vintage Wiring Harness is 48 hours.
