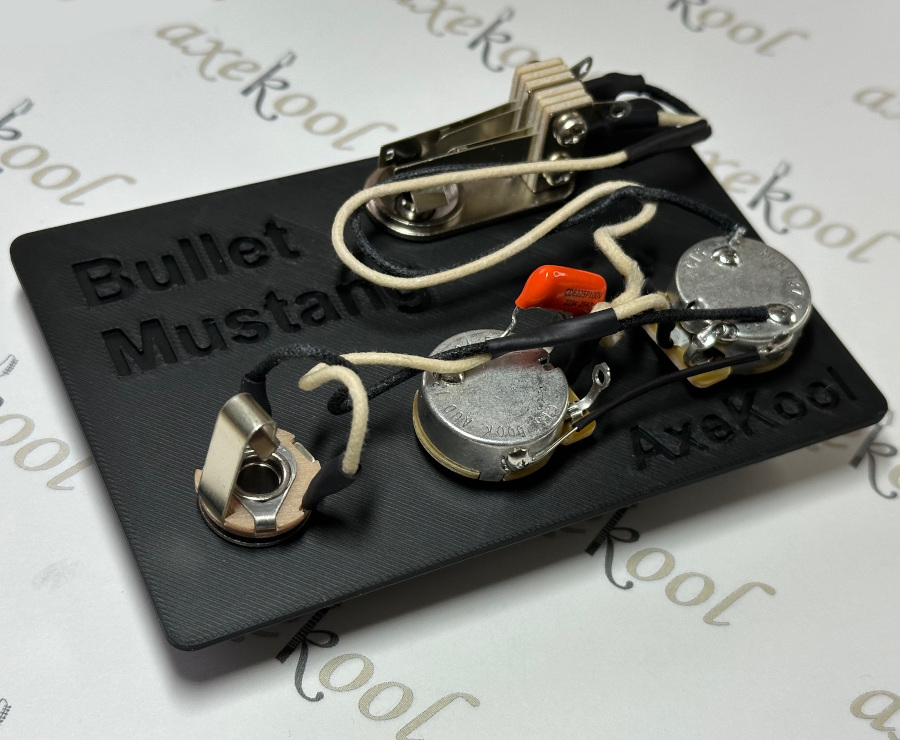

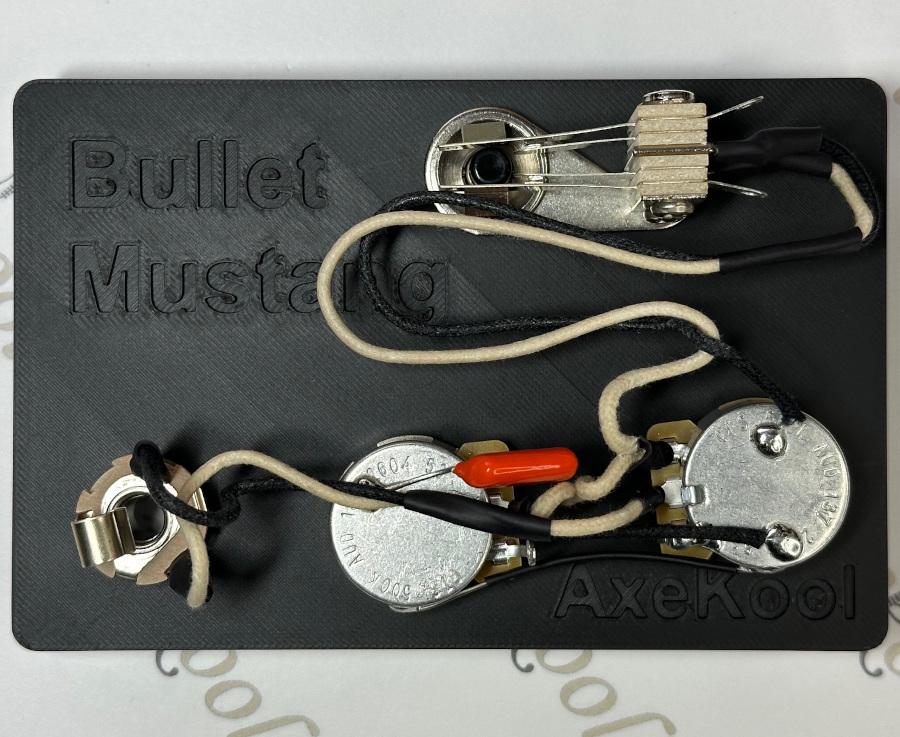

Fender Bullet Mustang Vintage Wiring Harness
This pre-wired Fender Bullet Mustang Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Bullet Mustang harnesses together. Everything is fully tested before being posted to you.
Read about our Vintage Wiring Harnesses here >. We use our Fender Bullet Mustang vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >
Components
Premium 500k or 250k CTS Potentiometers x 2, split shaft.
Capacitor x 1, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
Switchcraft Right Angle Toggle 3 Way Switch with choice of colour tip: White, Cream or Black.
Switchcraft USA Jack Socket.
20AWG Tinned copper ground.
Gavitt USA Braided Wire.
You are welcome to contact us with your custom requirements.
Controls
Master Volume
Master Tone
Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.
Will this fit my guitar?
Our pre-wired Fender Bullet Mustang Vintage Wiring Harness is wired to fit genuine Fender models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.
Centre to centre measurements between components
Centre of volume to tone pot – 50mm.
Centre of jack socket to tone pot – 40mm.
Centre of switch to volume pot – 135mm.
Measurements can sometimes vary slightly on some Bullet Mustang models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.
Installation, Documents & Support

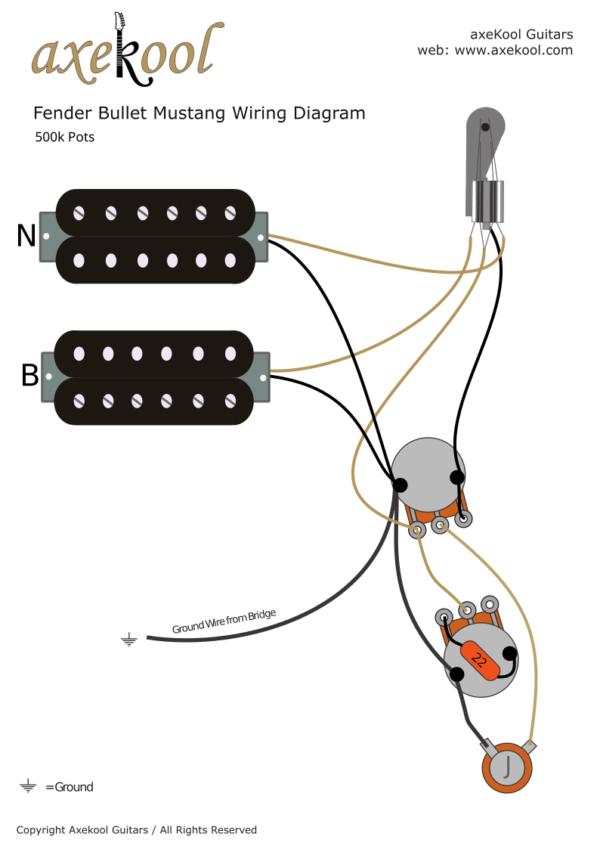

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender Bullet Mustang Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.
Order Times
We make everything to order and the turnaround time for a Fender Bullet Mustang Vintage Wiring Harness is 48 hours.
