Gibson & Epiphone Les Paul 1950’s Vintage Wiring Harness

£55.95£69.95

We build your Gibson & Epiphone Les Paul 1950’s Vintage Style Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

FREE Post for the UK.
We also ship to the United States, Canada, Ireland, Australia, New Zealand and most of Europe.

Description

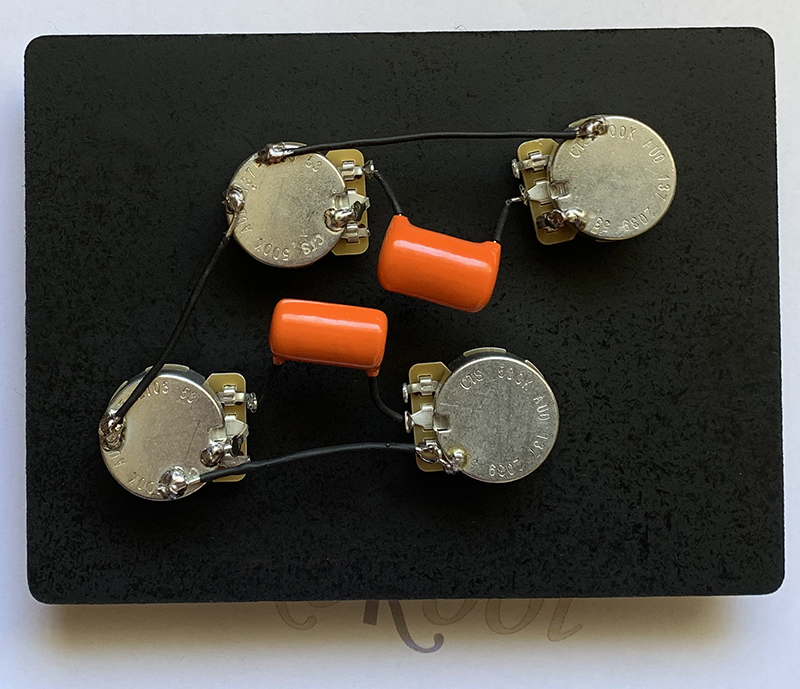

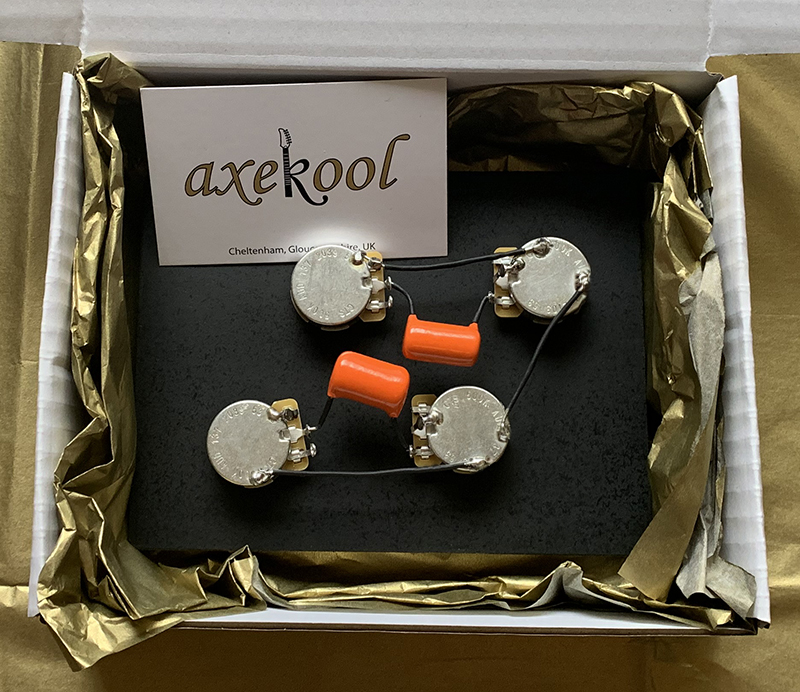

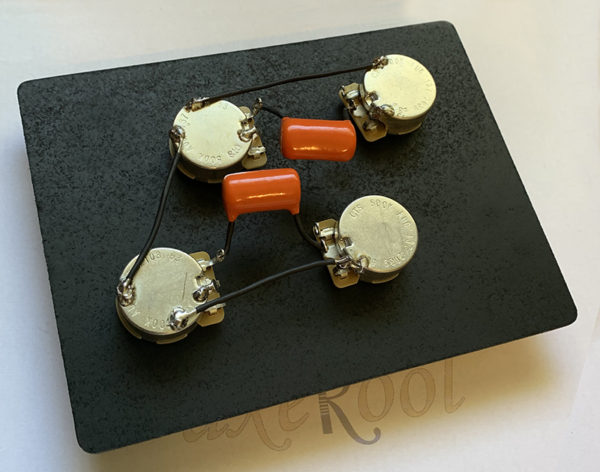

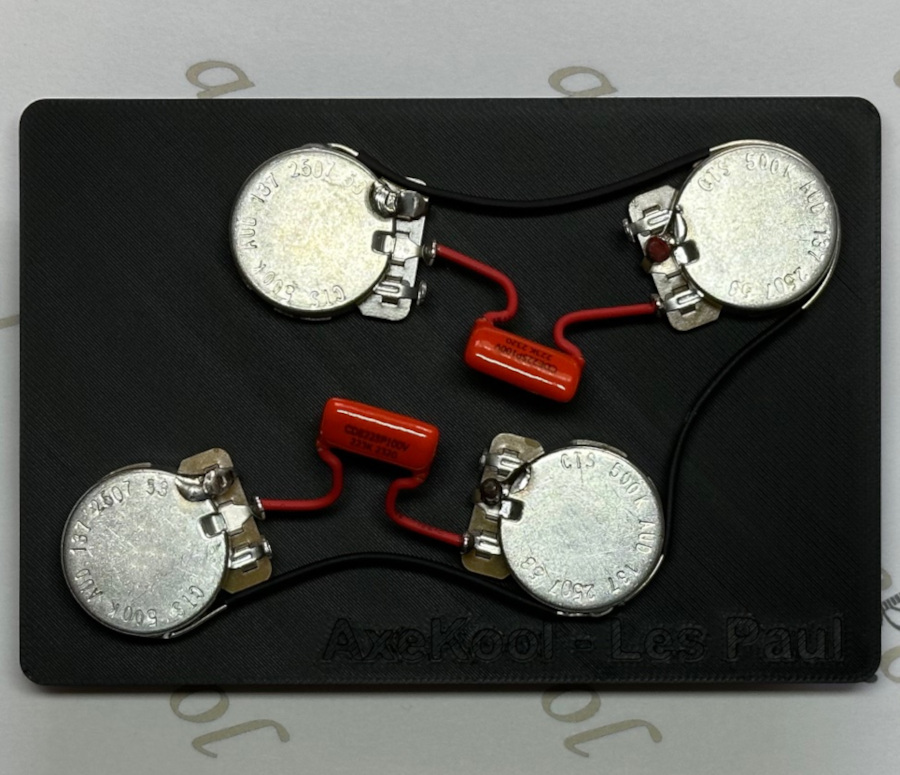

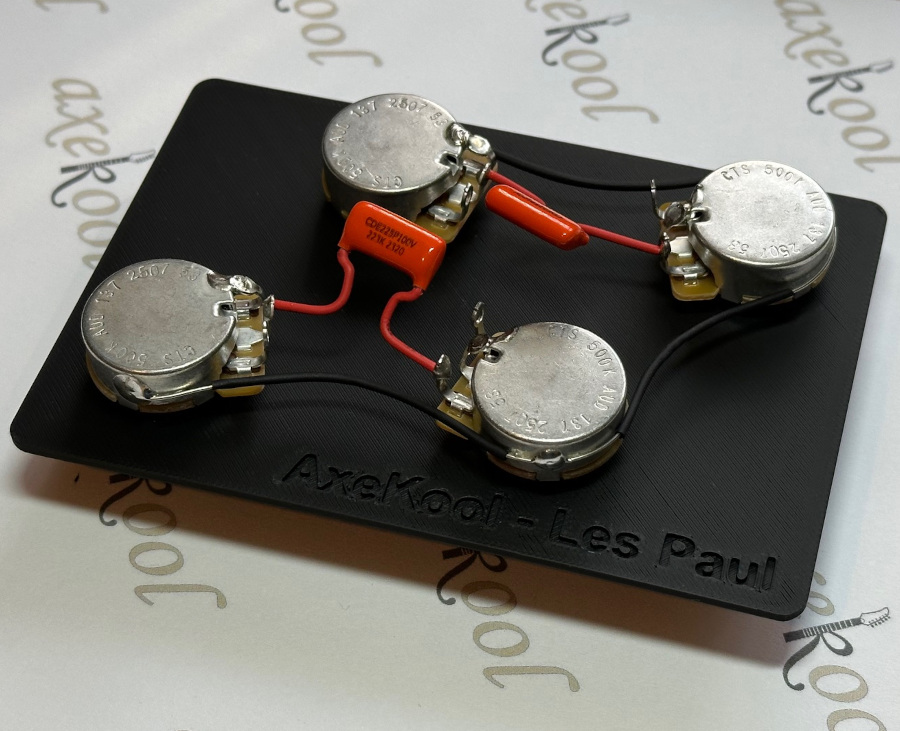

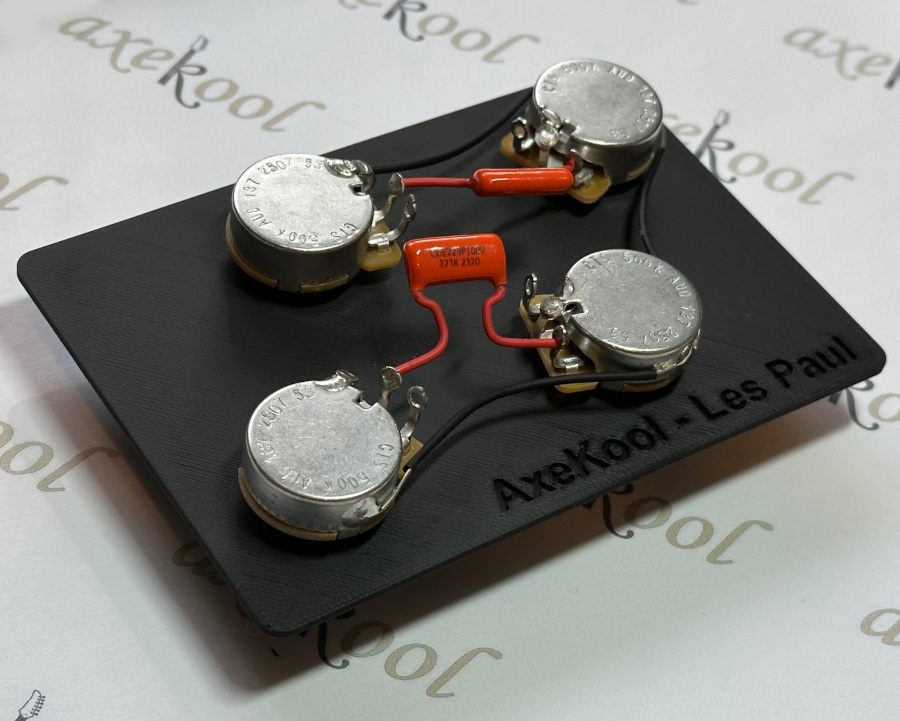

Gibson & Epiphone Les Paul 1950’s Vintage Style Wiring Harness

This Les Paul Harness is wired to the vintage 1950’s wiring schematic.

This pre-wired Gibson & Epiphone Les Paul 1950’s Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Les Paul harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our Les Paul vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 4, short or long split shaft with vintage audio taper (fitted with additional nut for height adjustment on the long shaft pot).
Capacitor x 2, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
20AWG Tinned copper ground.
You are welcome to contact us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Bridge.
Tone 2 – Neck.

Will this fit my guitar?
Our pre-wired Les Paul Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of neck volume pot and neck tone pot – 63mm.
Centre of neck volume pot and bridge volume pot – 50mm.
Centre of neck tone pot and bridge tone pot – 50mm.
Centre of bridge volume pot and bridge tone pot – 61mm.
Measurements can sometimes vary slightly on some Les Paul models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Les Paul 1950’s Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Les Paul 1950’s Vintage Wiring Harness is 48 hours.

Also Available
You may want to add a Jack socket and a Pre-Wired 3 Way Toggle Switch to complete the Harness.
