Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness

£46.95£54.95

We build your Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

FREE Post for the UK.
We also ship to the United States, Canada, Ireland, Australia, New Zealand and most of Europe.

Description

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness

This pre-wired Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Thunderbird Bass Wiring harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our Thunderbird Bass vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 3, split shaft with Vintage Audio Taper.
Switchcraft Jack Socket.
Capacitor / Size 0.047uF – Sprague Orange Drop or PIO Paper in Oil.
Gavitt USA made cloth covered 22AWG wire.
Tinned-copper “buss” ground wire.
You are welcome to contact us with your custom requirements.

Jack Socket
There are various types of Jack Sockets fitted to different models, so we have left this blank for you. If your Thunderbird bass does use a standard jack socket, we do sell these in the shop here > We would be happy to solder it on to the harness for you, but please check you bass first.

Controls
Neck Volume Control.
Bridge Volume Control.
Master Tone.

Will this fit my guitar?
Our pre-wired Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness is wired to fit genuine Gibson or Epiphone guitars. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes on the control plate will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Volume pot 1 to centre of volume pot 2 – 40mm.
Centre of Volume pot 2 to centre of tone pot – 40mm..
These measurements were taken from a Gibson and Epiphone guitar. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

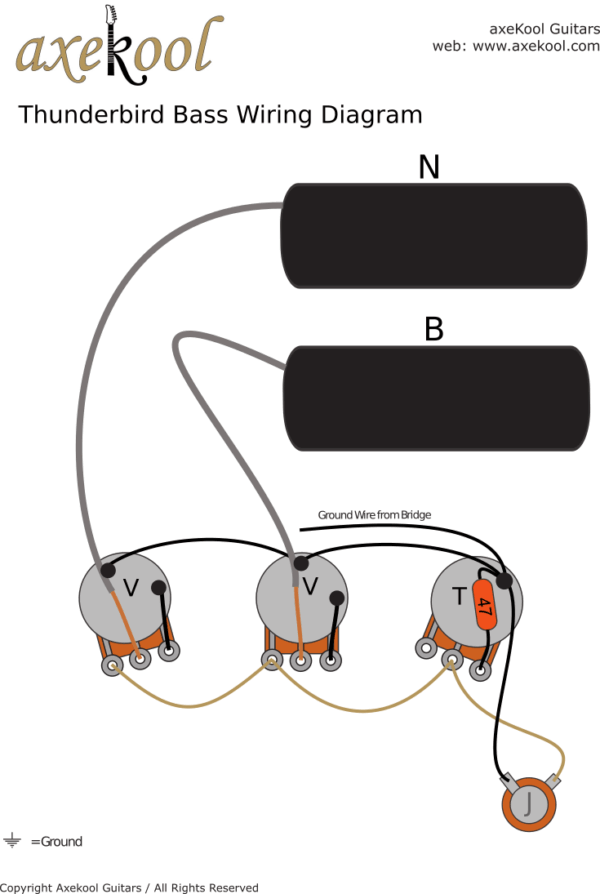

Please see our Support Page for wiring diagrams and fitting instructions.
The Thunderbird Bass wiring harness is one of the more simple harnesses to fit with just a few wires to  solder. We have made it as simple as possible to install your Thunderbird Bass Vintage Wiring Harness. We offer full after support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Thunderbird Bass Wiring Harness is 48 hours.

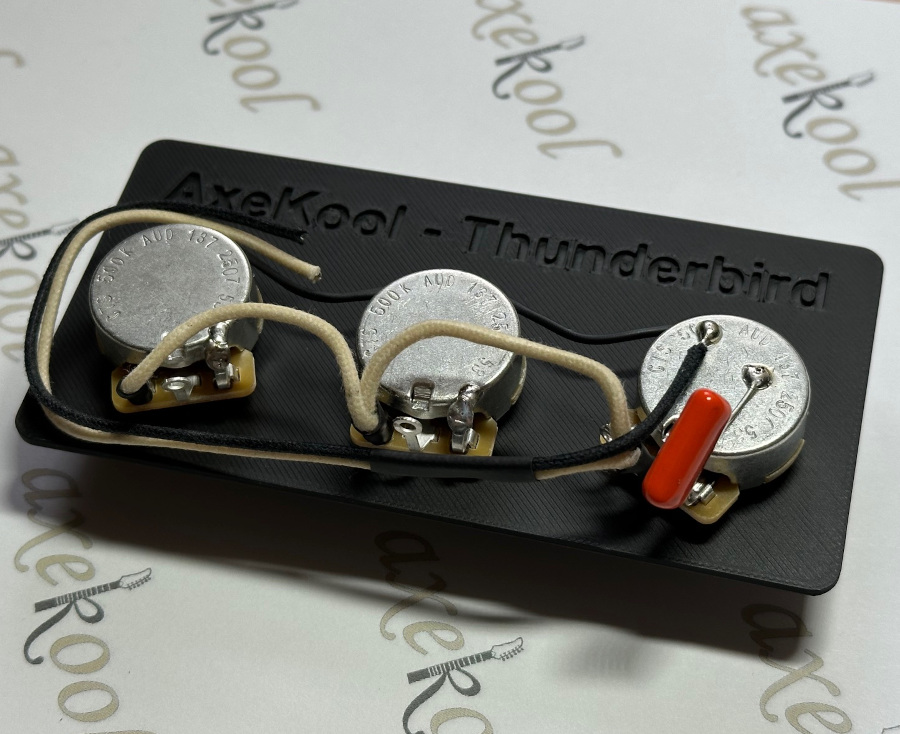

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness, Wiring Loom

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness

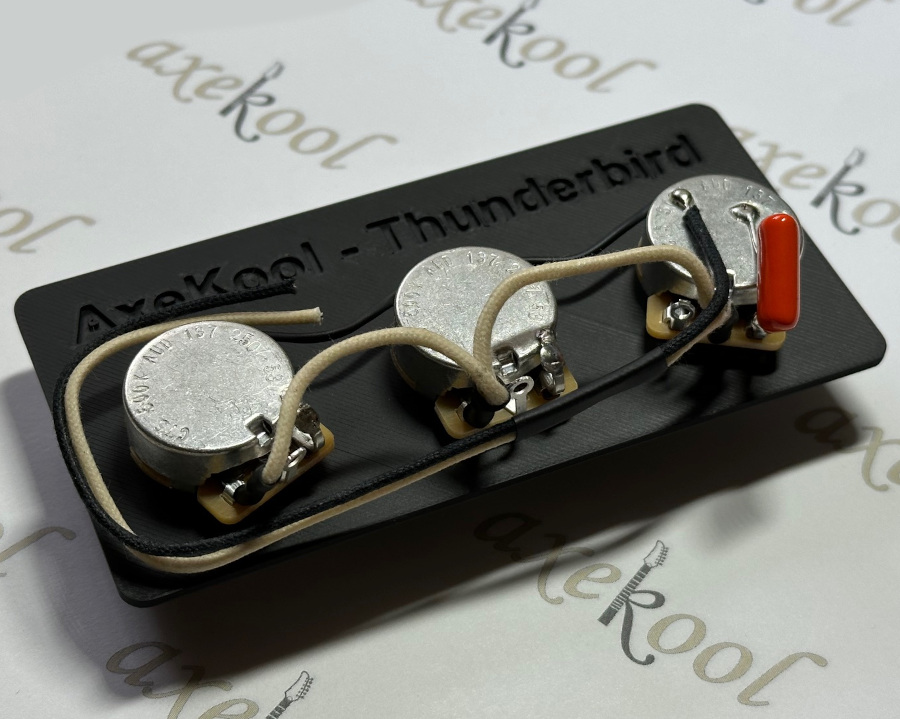

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness, Wiring Loom

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness

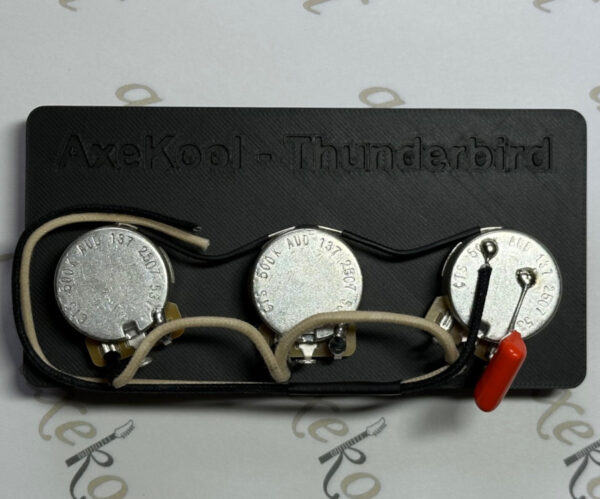

Gibson & Epiphone Thunderbird Bass Vintage Wiring Harness, Wiring Loom
