DeArmond Starfire Bass Vintage Wiring Harness

DeArmond Starfire Bass Vintage Wiring Harness

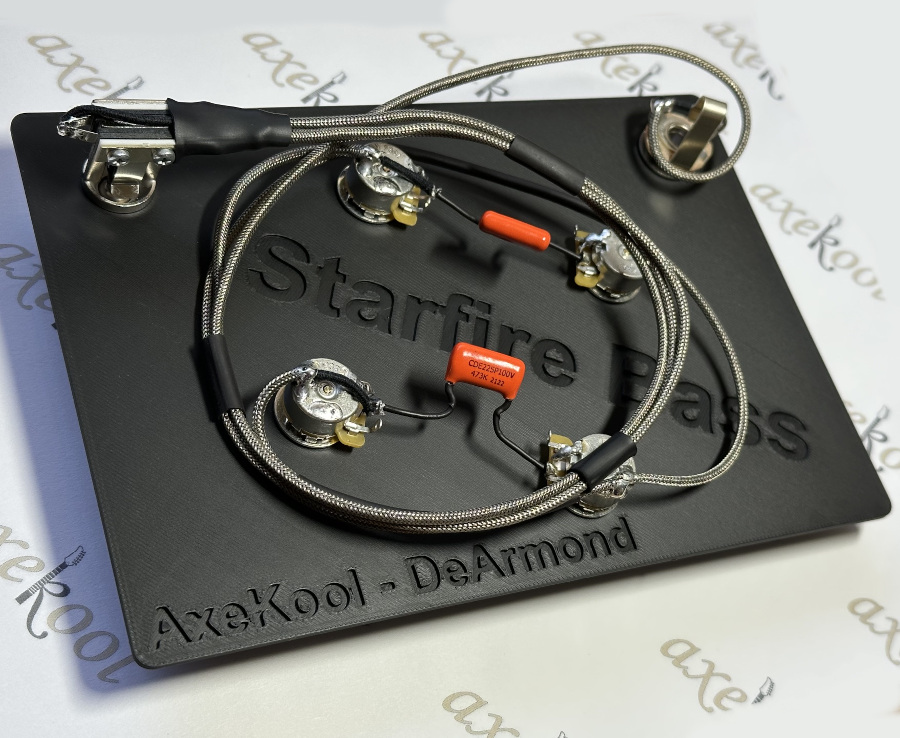

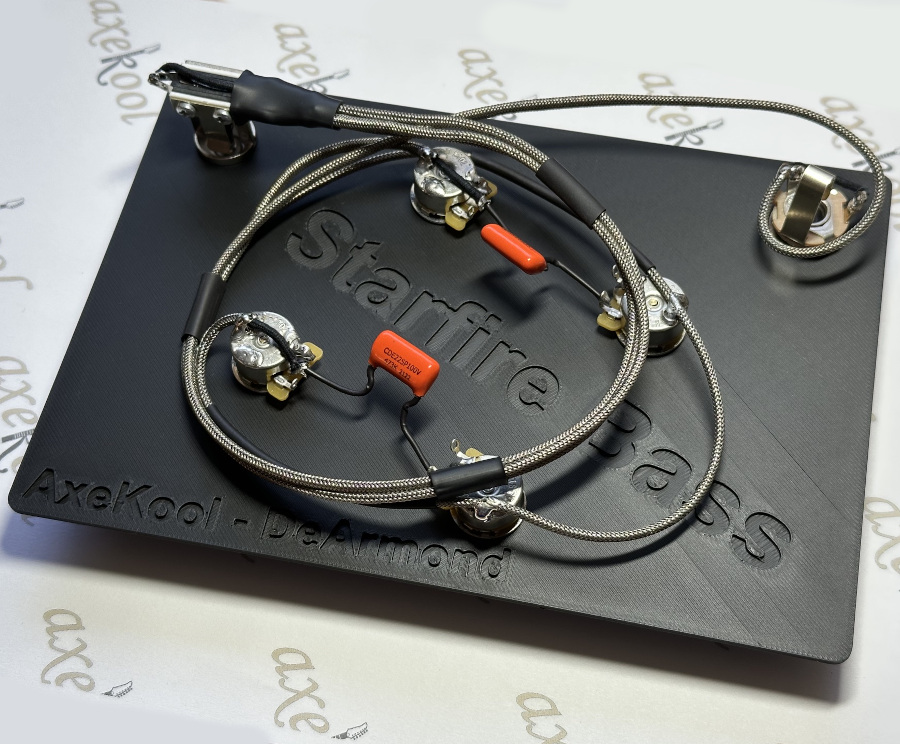

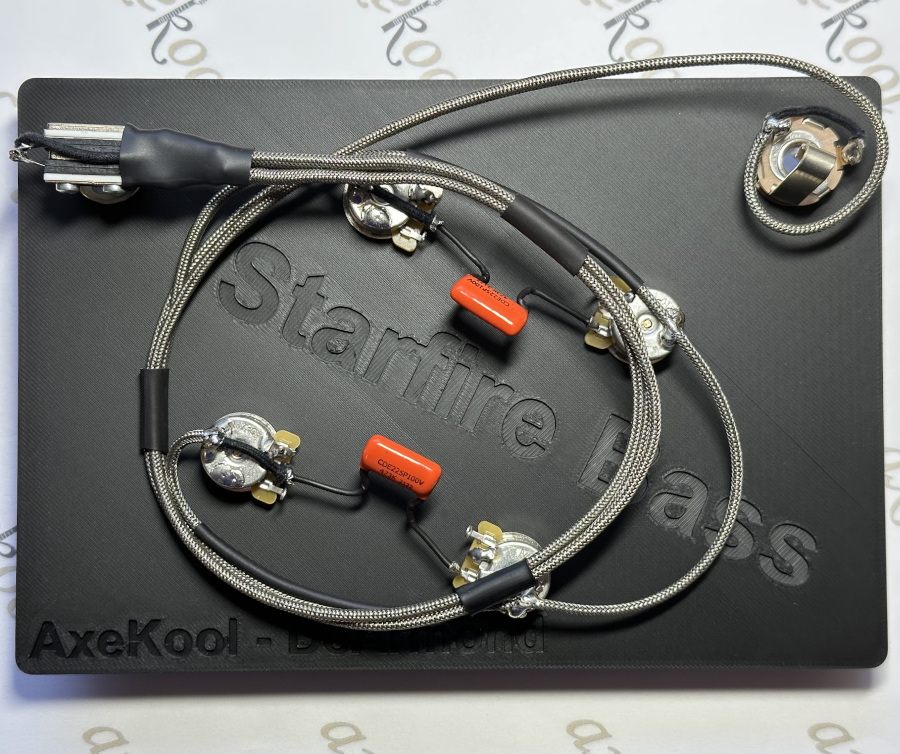

This pre-wired DeArmond Starfire Bass Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our DeArmond Starfire Bass Harnesses together. Everything is fully tested before being posted to you.

This is a Professional DeArmond Wiring Harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Components

• USA 500k CTS Potentiometers x 4, Options of Short, Long and Mini Split Shafts (fitted with additional nut for height adjustment on the Long Pots).
• Switchcraft USA 3 Way Toggle Switch (short frame).
• Switchcraft USA Jack Socket.
• Sprague Orange Drop Capacitor x 2, Size 0.047uF.
• Gavitt USA Braided Wire.
• Heatshrink Insulation Sleeving.
• Mounted on a 3D Printed Wiring Template.
• Jack Socket and Pots supplied with Nut, Flat Dress Washer & Locking Star Washer.

You are welcome to Contact Us with your custom requirements.

Controls (5 x Potentiometers)
Master Volume.
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Bridge.
Tone 2 – Neck.

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired DeArmond Starfire Bass Vintage Wiring harness is wired to fit all models. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of neck volume pot to centre of neck tone pot – 75mm.
Centre of neck volume pot to bridge volume pot – 75mm.
Centre of bridge volume pot to bridge tone pot – 75mm.
Centre of neck tone pot to bridge tone pot – 75mm.
Measurements can sometimes vary slightly on some DeArmond Starfire Bass Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Switch Tip
The USA 3 Way Switch requires a Switch Tip that has a imperial thread. If you are replacing a cheaper switch in your guitar the tip will not fit as it will be a metric thread. We sell the tips: Switchcraft Toggle Switch Tip / Cap / Knob (6 Colours).

Installation, Wiring Diagram and Support
Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your DeArmond Starfire Bass Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram.
We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a DeArmond Starfire Bass Vintage Wiring Harness is 48 hours.



DeArmond Starfire Bass Vintage Wiring Harness, Starfire Bass Wiring Loom
