Epiphone Sheraton Vintage Wiring Harness

£84.95

We build your Epiphone Sheraton Vintage Style Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

FREE POSTAGE and selling to the United Kingdom only.

Description

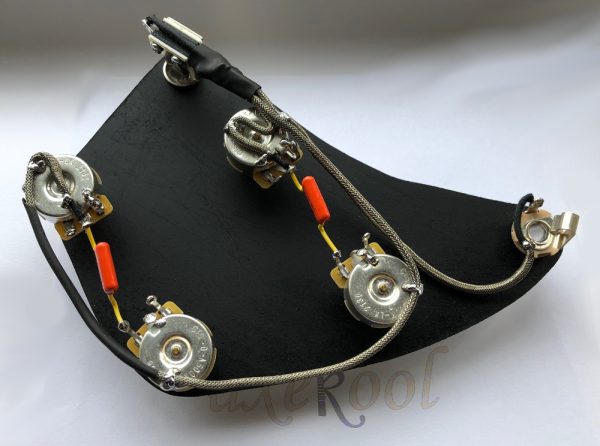

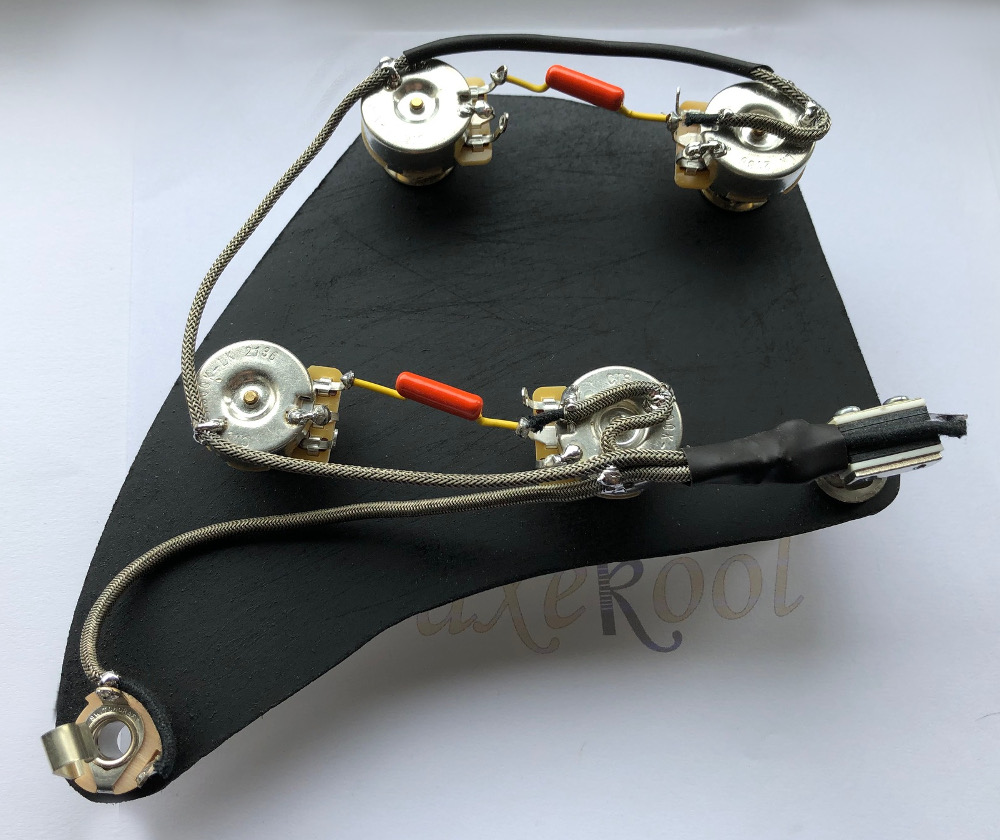

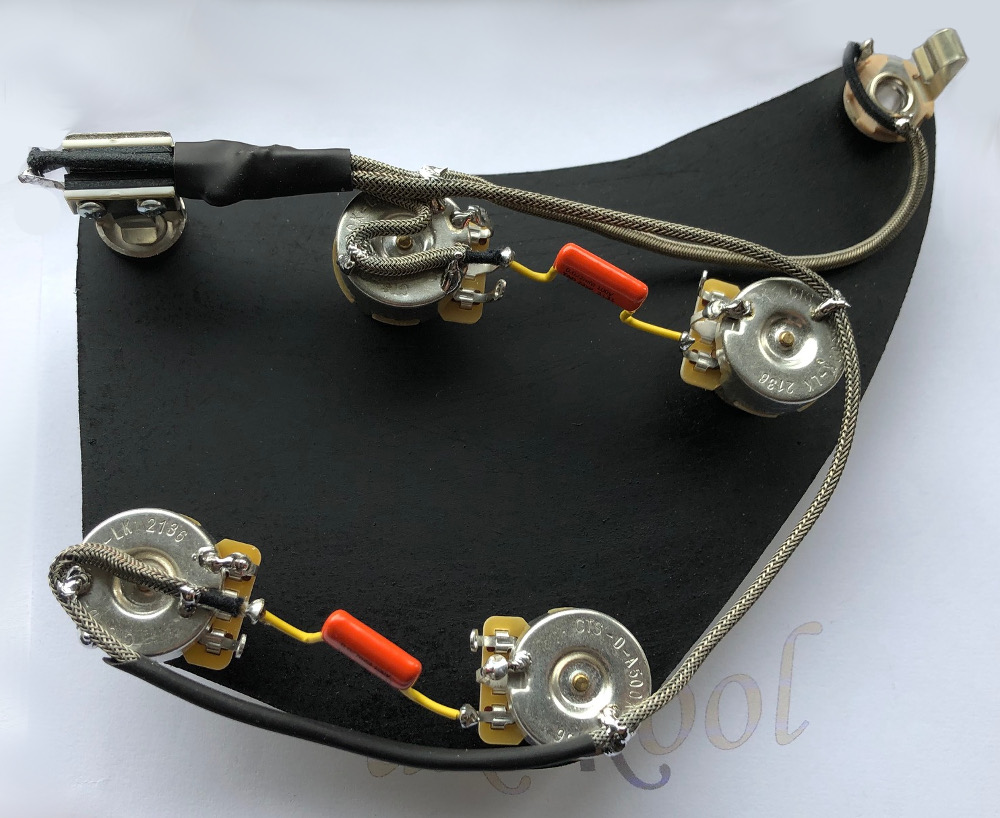

Epiphone Sheraton Vintage Style Wiring Harness

This pre-wired Epiphone Sheraton Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Epiphone Sheraton harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our Sheraton vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 4, short or long split shaft with vintage audio taper. (fitted with additional nut for height adjustment on the long shaft pot)
Switchcraft Toggle Switch – Choice of switch knob colour is included, Amber, Black, Chrome, Cream or Gold.
Switchcraft USA Jack Socket
Sprague Orange Drop 0.022uF Capacitors x 2
Gavitt USA made Braided wire
You are welcome to contact us with your custom requirements.

Controls
Volume 1 – Bridge
Volume 2 – Neck
Tone 1 – Bridge
Tone 2 – Neck

Switching
Position 1 – Bridge Pickup
Position 2 – Bridge & Neck Pickup
Position 3 – Neck Pickup

Will this fit my guitar?
Our pre-wired Epiphone Sheraton Wiring harness is wired to fit all models. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of Switch to neck volume pot – 48mm
Centre of neck volume pot to centre of neck tone pot – 66mm
Centre of neck volume pot to bridge volume pot – 66mm
Centre of bridge volume pot to bridge tone pot – 66mm
Centre of neck tone pot to jack socket – 66mm
Measurements can sometimes vary slightly on some Sheraton Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

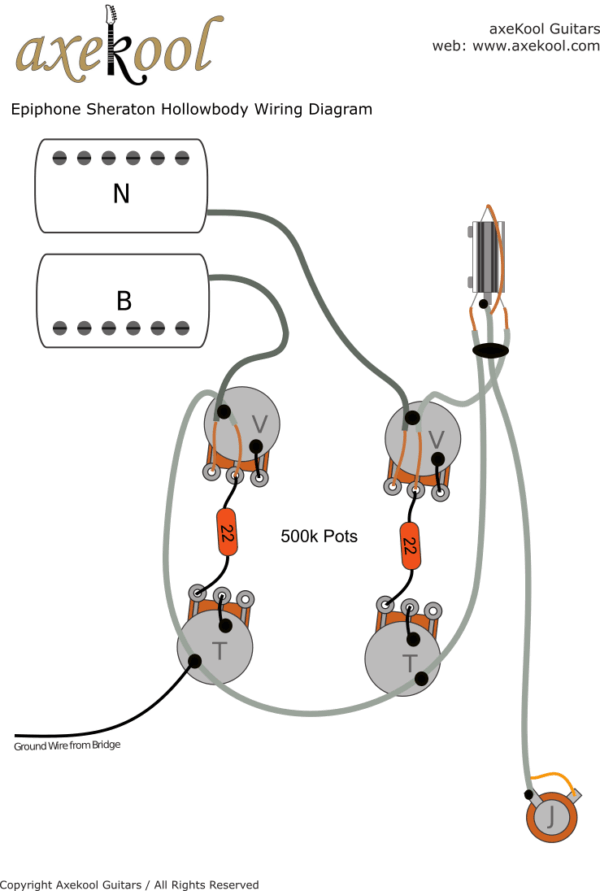

We have made it as simple as possible to install your Epiphone Sheraton Vintage Wiring Harness with a complete fitting guide and simple to follow wiring diagram included with your purchase. We also offer full support should you need it. There is a lot of doom and gloom regarding the Epiphone Sheraton wiring harness installation, this is very exaggerated. With a simple process it can be achieved quite easy. You won’t need any fancy tools or equipment to install a Epiphone Sheraton wiring harness, just a small adjustable spanner/wrench, some wire or fishing line, a pair of long nose pliers or strong pointed tweezers, a soldering iron, and a bit of patience.

Useful Tip 1
I think it would be a good idea to mention at this point if you are thinking of changing your pickups on your Epiphone Sheraton, this would be the time to do it, as changing pickups will involve the removal of the wiring harness, so best to do everything at the same time.

Useful Tip 2
Because of the construction of a Epiphone Sheraton, you will be able to have everything soldered up to the harness and strings fitted to allow testing before the wiring harness goes into the body. Its a great time to test your pickup soldering to the Potentiometers.

Order Times
We make everything to order and the turnaround time for a Epiphone Sheraton Vintage Wiring Harness is 48 hours.

Epiphone Sheraton Wiring Harness, Epiphone Sheraton Wiring Loom

Epiphone Sheraton Vintage Style Wiring Harness

Epiphone Sheraton Vintage Wiring Harness
