Gibson & Epiphone Explorer Vintage Wiring Harness

£60.50

We build your Gibson & Epiphone Explorer Vintage Style Wiring Harness to order using professional fully tested electrical components.

Includes wiring diagram & installation guide.

Description

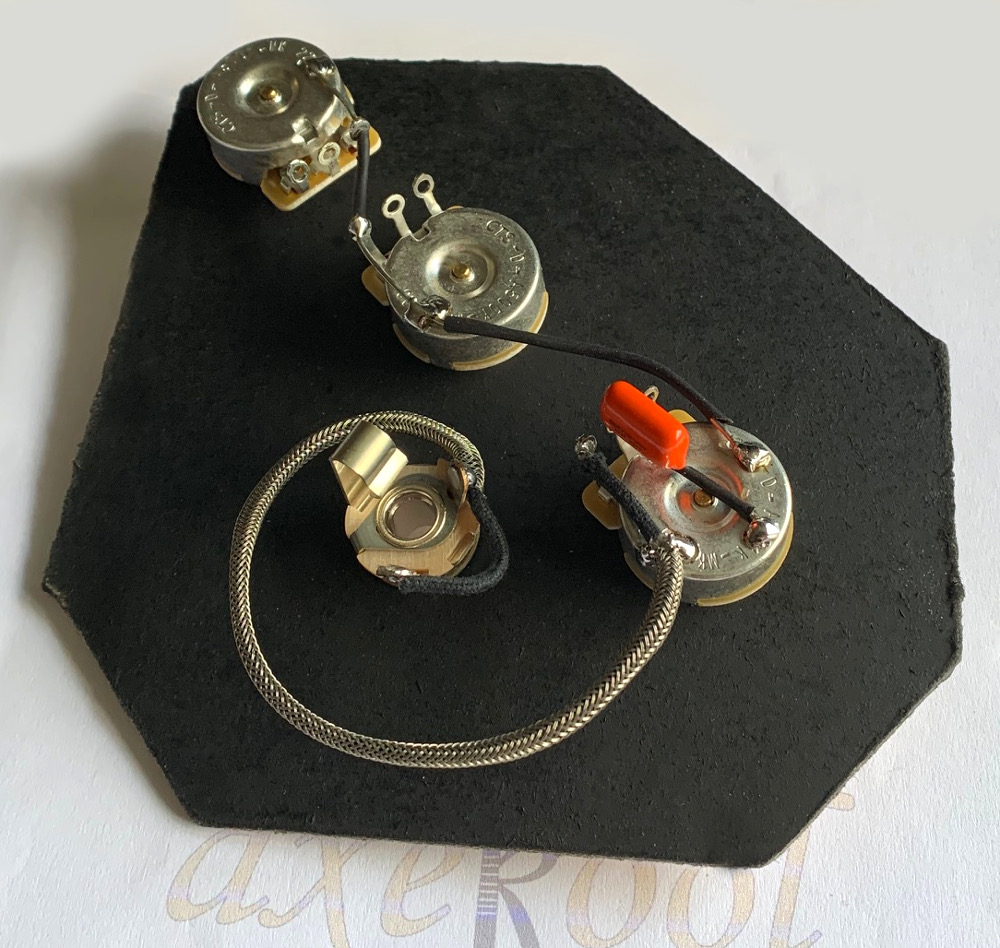

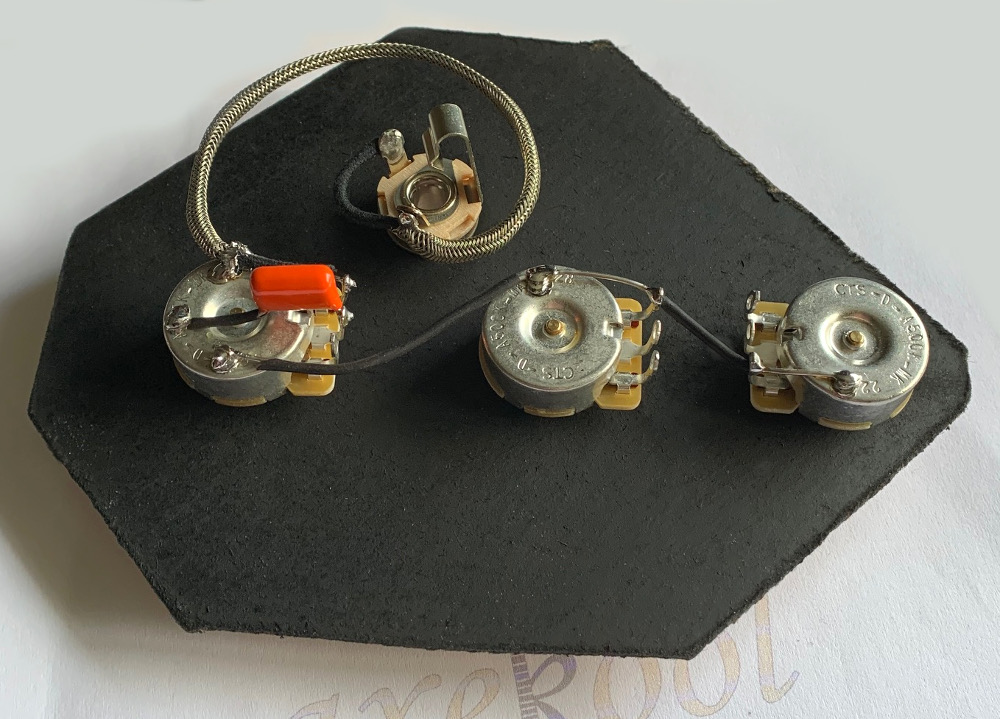

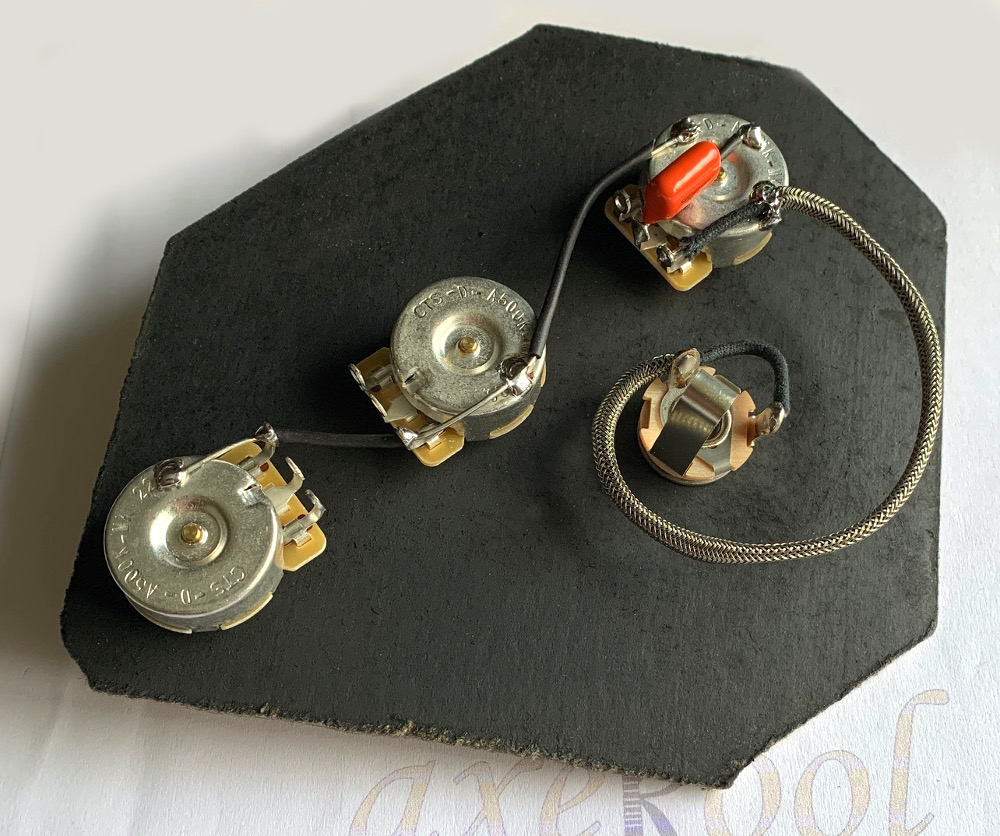

Gibson & Epiphone Explorer Vintage Style Wiring Harness

This pre-wired Gibson & Epiphone Explorer Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Explorer harnesses together. Everything is fully tested before being posted to you.

This is a Professional Explorer wiring harness using the very best in components to enhance the quality of tone and sound output from your guitar.

Read about our Vintage Wiring Harnesses Here. We use our Explorer vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.

Components
Premium 500k CTS Potentiometers x 3, short split shaft with vintage audio taper.
Capacitor x 1, Size 0.022uF / Sprague Orange Drop.
Switchcraft USA Jack Socket.
Gavitt USA made Braided wire.
20AWG Tinned copper ground.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.

Controls
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Master Tone.

Will this fit my guitar?
Our pre-wired Explorer Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Pot Spacing is normally 60mm apart –  centre to centre
When ordering, please email us the distance (centre to centre) of the 3 pots on your Explorer. There are several variations of the Explorer pots spacing. We allow plenty of movement in wire lengths between components to allow for a comfortable fit.

Installation, Documents & Support

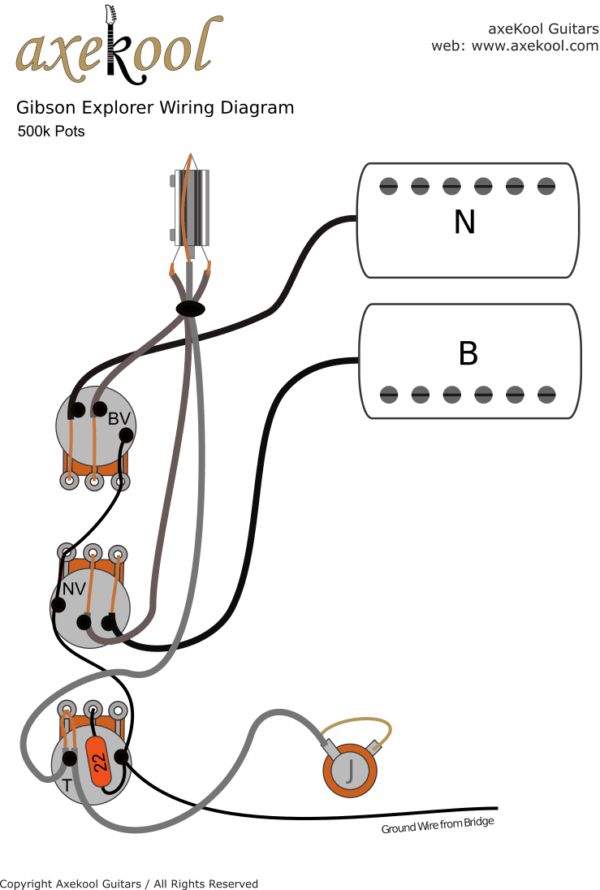

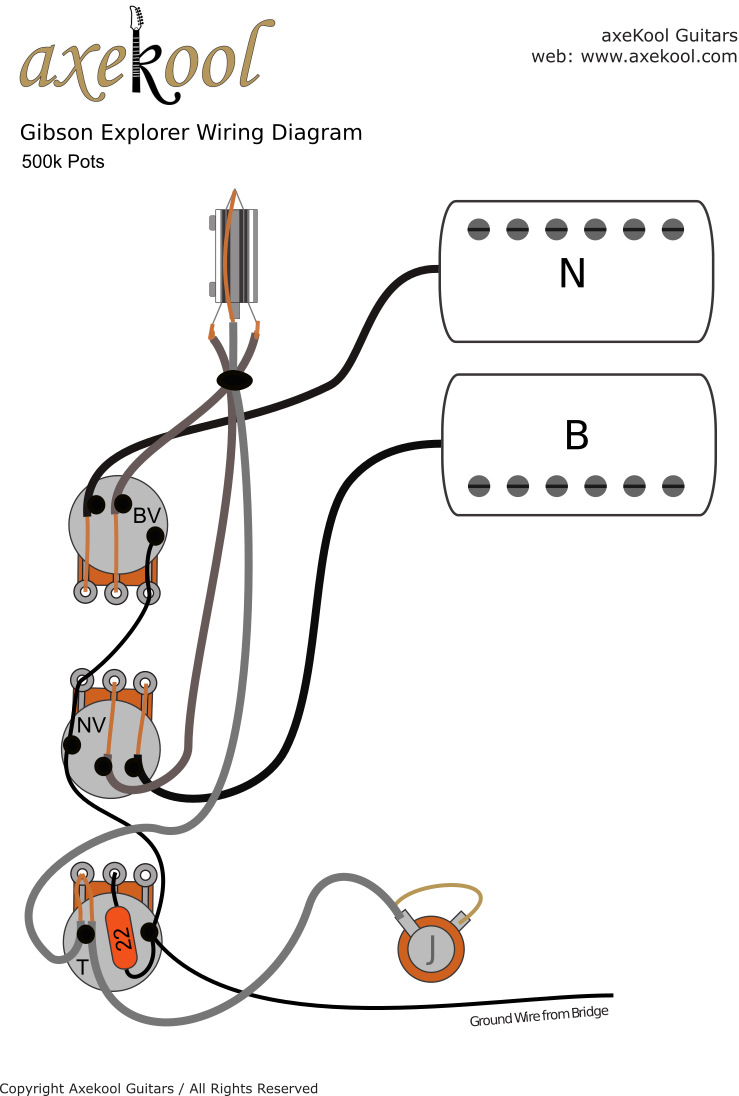

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Explorer Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Explorer Vintage Wiring Harness is 48 hours.

You may also need the following to complete this Wiring Harness:

  • Pre-Wired 3 Way Toggle Switch
  • All Available Here
Gibson & Epiphone Explorer Vintage Wiring Harness / Explorer Wiring Loom
Gibson & Epiphone Explorer Vintage Wiring Harness / Explorer Wiring Loom
Gibson & Epiphone Explorer Vintage Wiring Harness / Explorer Loom
Gibson & Epiphone Explorer Vintage Wiring Harness / Explorer Wiring Loom

You may also require the following to complete your Explorer Wiring Harness:

Pre-Wired Switchcraft Right Angled 3 Way Toggle Switch
Pre-Wired Switchcraft Right Angled 3 Way Toggle Switch

All Available on our Electrical Components Page

Gibson / Epiphone Explorer Vintage Wiring Harness
