Fender American Jazzmaster Vintage Wiring Harness

£75.95£85.95

We build your Fender American Jazzmaster Vintage Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

Description

Fender American Jazzmaster Vintage Wiring Harness

This pre-wired Fender American Jazzmaster Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender American Jazzmaster harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our Fender American Jazzmaster vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 2, split shaft.
Capacitor x 1, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
Switchcraft Right Angle Toggle 3 Way Switch with choice of colour tip: White, Cream or Black.
Switchcraft USA Jack Socket.
20AWG Tinned copper ground.
Gavitt USA made cloth covered 22AWG wire.
You are welcome to contact us with your custom requirements.

Controls
Master Volume
Master Tone

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired Fender American Jazzmaster Vintage Wiring Harness is wired to fit genuine Fender models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of volume to tone pot – 55mm.
Centre of jack socket to tone pot – 60mm.
Centre of switch to volume pot – 120mm.
Measurements can sometimes vary slightly on some American Jazzmaster models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

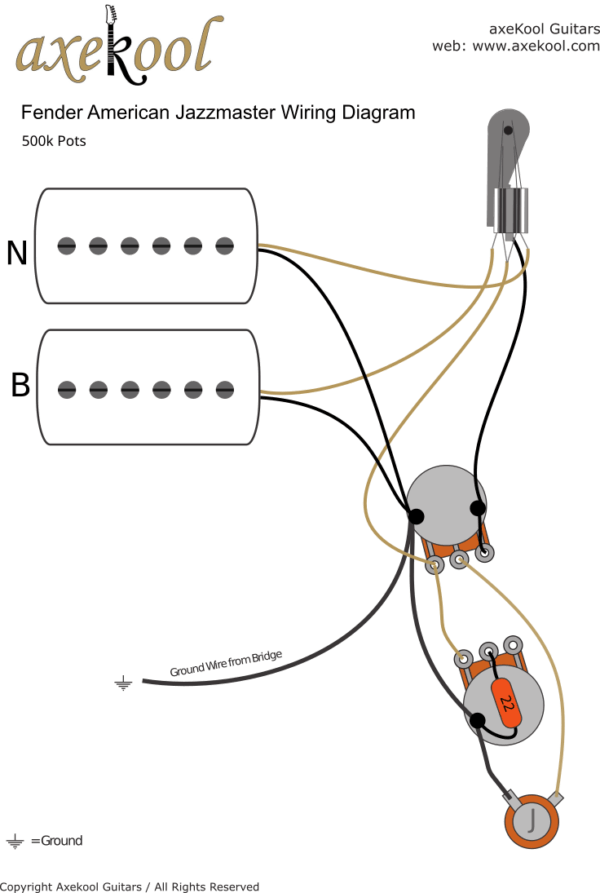

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender Jazzmaster American Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Fender American Jazzmaster Vintage Wiring Harness is 2-3 days.

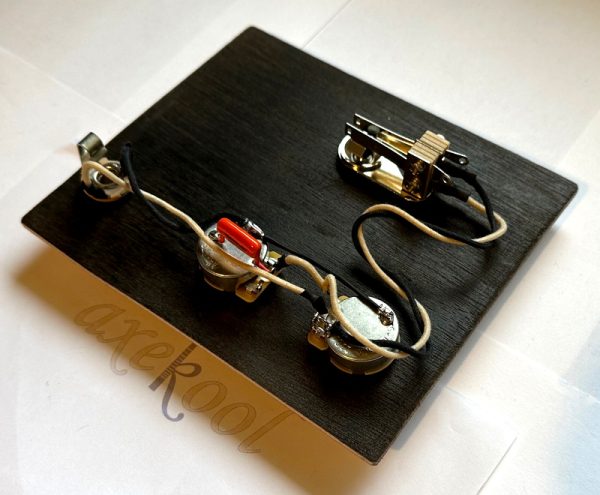

Fender American Jazzmaster Vintage Wiring Harness, Wiring Loom

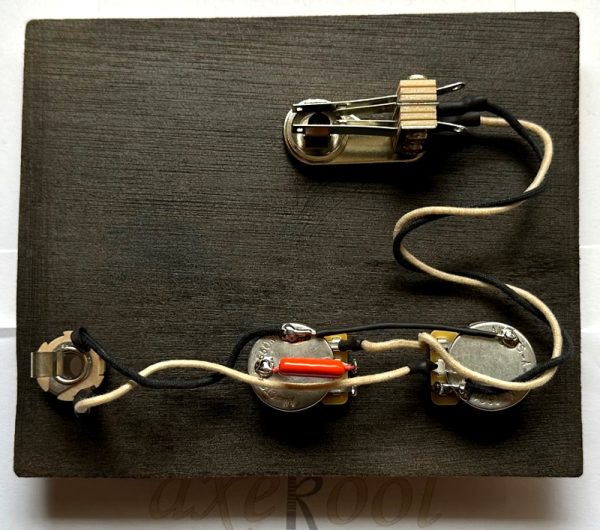

Fender American Jazzmaster Vintage Wiring Harness

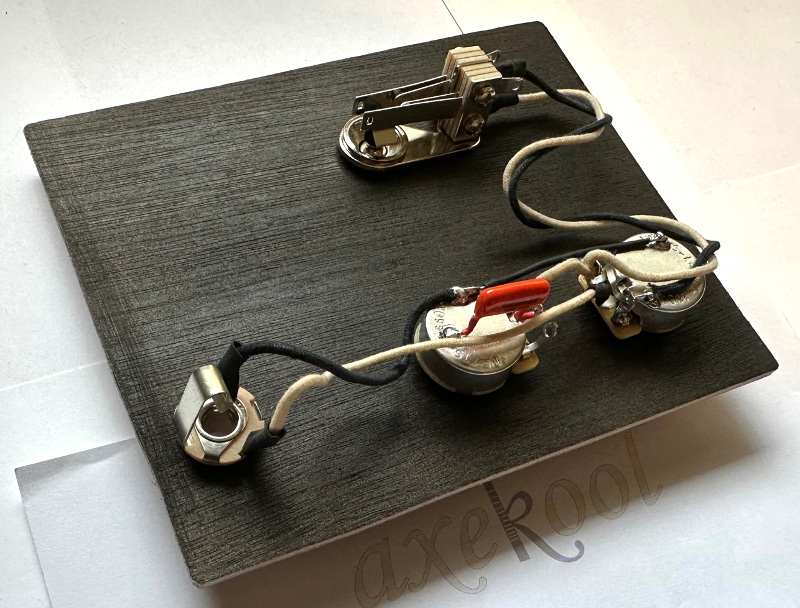

Fender American Jazzmaster Vintage Wiring Harness, Wiring Loom

Fender American Jazzmaster Vintage Wiring Harness

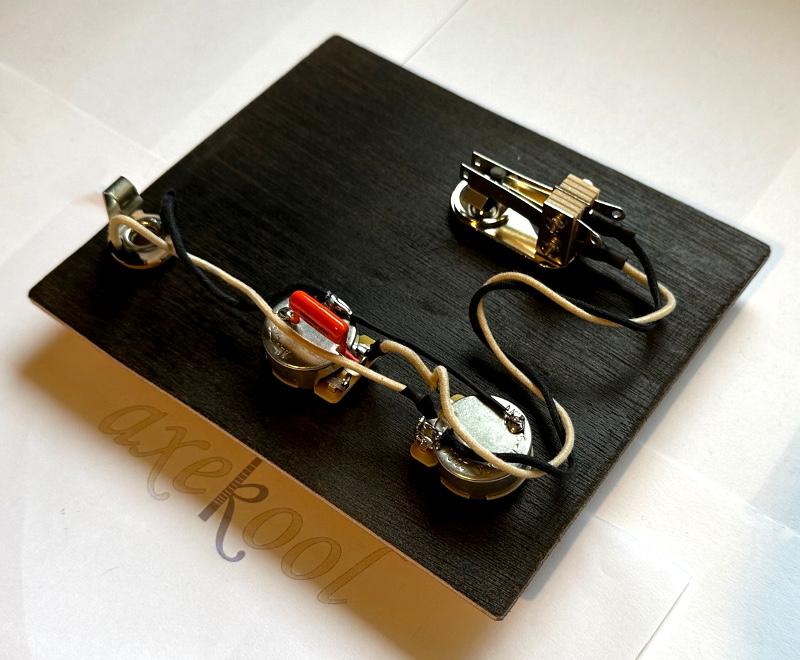

Fender American Jazzmaster Vintage Wiring Harness, American Jazzmaster wiring Loom
