Fender Telecaster Deluxe Vintage Wiring Harness
This pre-wired Fender Telecaster Deluxe Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Fender Telecaster Deluxe harnesses together. Everything is fully tested before being posted to you.
Read about our Vintage Wiring Harnesses here >. We use our Les Paul vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

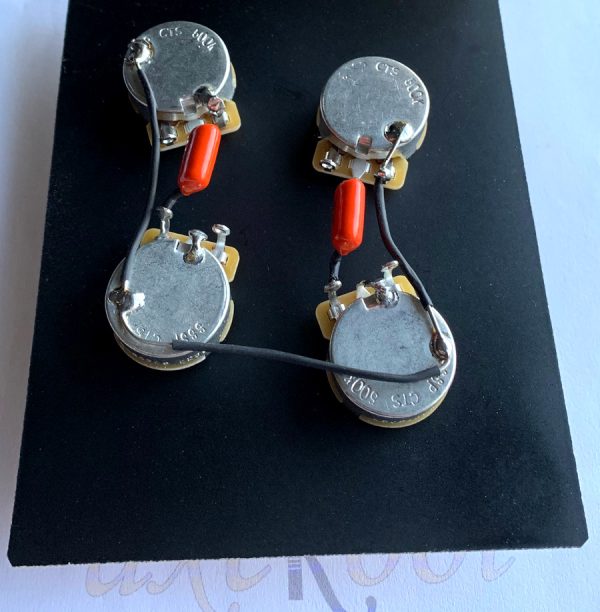

Premium 500k CTS Potentiometers x 4, solid shaft.
Capacitor x 2, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
20AWG Tinned copper ground.
You are welcome to contact us with your custom requirements.
Volume 1 – Bridge.
Volume 2 – Neck.
Tone 1 – Bridge.
Tone 2 – Neck.
Will this fit my guitar?
Our pre-wired Fender Telecaster Deluxe Vintage Wiring Harness is wired to fit genuine Fender models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.
Centre to centre measurements between components
Centre of neck volume pot and neck tone pot – 53mm.
Centre of neck volume pot and bridge volume pot – 40mm.
Centre of neck tone pot and bridge tone pot – 40mm.
Centre of bridge volume pot and bridge tone pot – 53mm.
Measurements can sometimes vary slightly on some Tele Deluxe models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.
Installation, Documents & Support

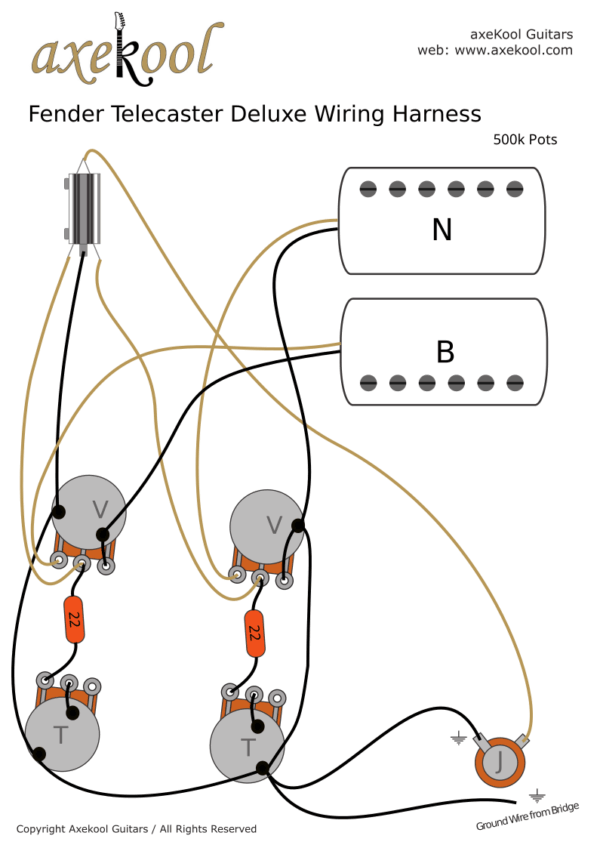

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Fender Telecaster Deluxe Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.
We make everything to order and the turnaround time for a Fender Telecaster Deluxe Vintage Wiring Harness is 48 hours.
