Gibson & Epiphone Peter Frampton Wiring Harness (3 Pickups)

£55.95£84.95

We build your Gibson & Epiphone Les Paul,Peter Frampton Vintage Style Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

Description

Gibson & Epiphone Les Paul, Peter Frampton Wiring Harness

This Les Paul Harness is wired to the Peter Frampton wiring schematic for 3 Humbuckers.

The Peter Frampton configuration gives you full control of all 3 pickups to use individually or altogether in any order and a master tone.

Peter Frampton Configuration
The Peter Frampton style wiring with a 3 volume and 1 master tone configuration is where the 2nd Tone control is reassigned to the Middle pickup Volume control. The Middle pickup is always on (regardless of the toggle switch position) and you can blend it in with either or both the Bridge & Neck. With the switch in the middle position, you can turn down the bridge and neck and feature only the middle pickup. Basically it gives you full control of all 3 pickups to use individually or altogether in any order and a master tone.

This pre-wired Gibson & Epiphone Les Paul, Peter Frampton Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our Gibson & Epiphone Les Paul, Peter Frampton harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our Les Paul vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components

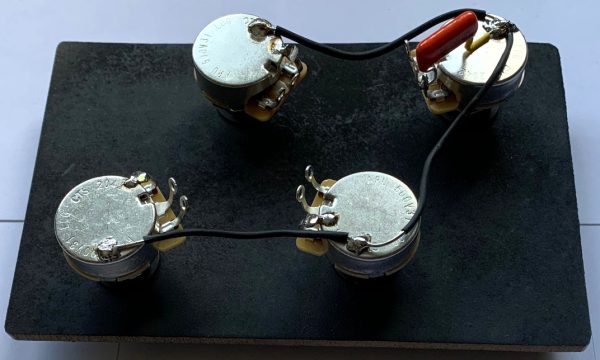

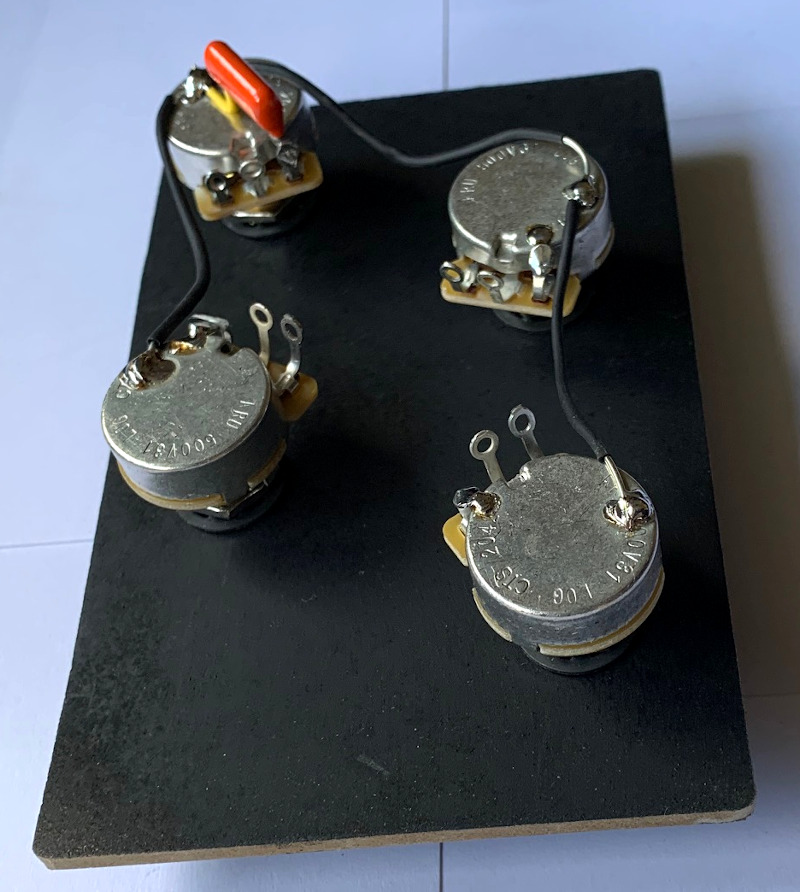

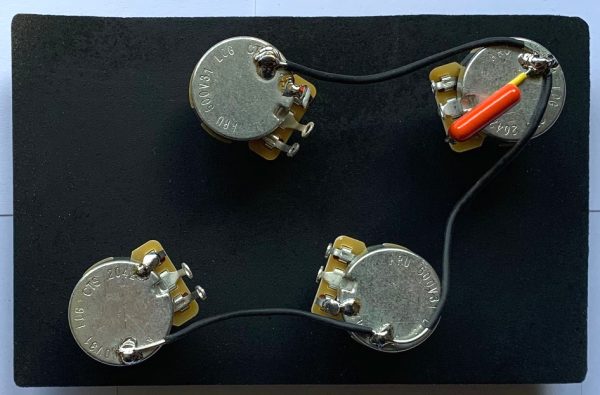

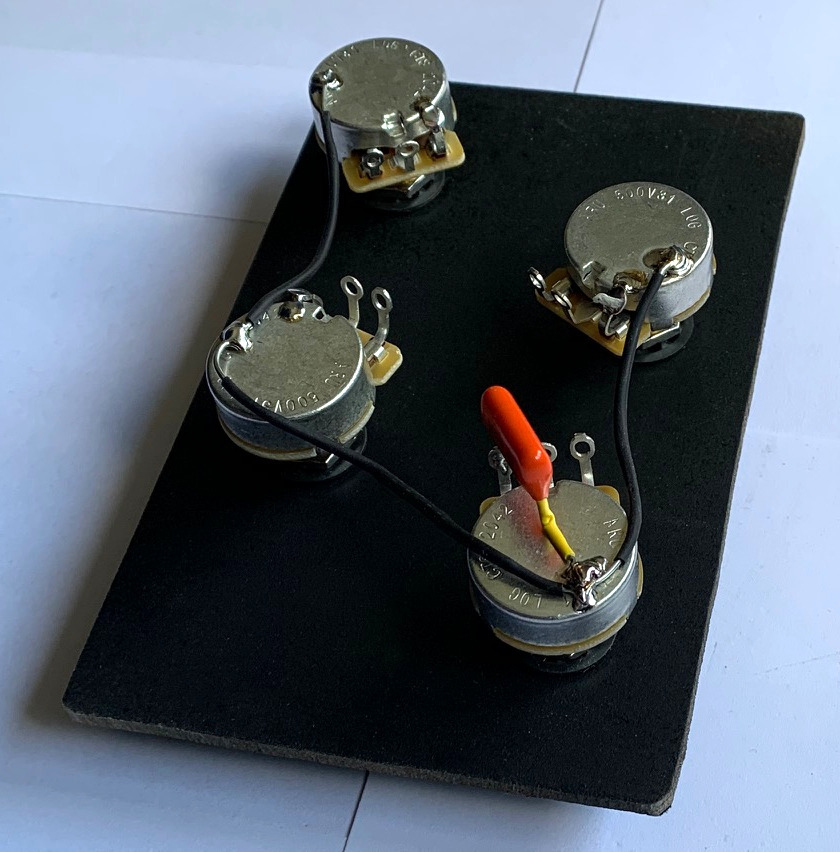

Premium 500k CTS Potentiometers x 4, short or long split shaft with vintage audio taper (fitted with additional nut for height adjustment on the long shaft pot).
Capacitor x 1, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
20AWG Tinned copper ground.
You are welcome to contact us with your custom requirements.

Long or Short Potentiometers? (Pots)
If you are unsure of the pot length required on your Les Paul guitar, then please order the Long Pots as they will fit all models and can also be adjusted in length due to the extra nut fitted, where if you order the Short Pots they may not be long enough.
Short Pot threaded bushing height: 9.52mm.
Long Pot threaded bushing height: 19.05mm (supplied with 2 nuts for height adjustment).

Controls
Volume 1 – Bridge.
Volume 2 – Middle.
Volume 3 – Neck.
Tone 1 – Master.

Will this fit my guitar?
Our pre-wired Les Paul, Peter Frampton Wiring harness is wired to fit genuine Gibson & Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of neck volume pot and neck tone pot – 63mm.
Centre of neck volume pot and bridge volume pot – 50mm.
Centre of neck tone pot and bridge tone pot – 50mm.
Centre of bridge volume pot and bridge tone pot – 61mm.
Measurements can sometimes vary slightly on some Les Paul models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know when you order and we will build your harness to your specifications.

Installation, Documents & Support

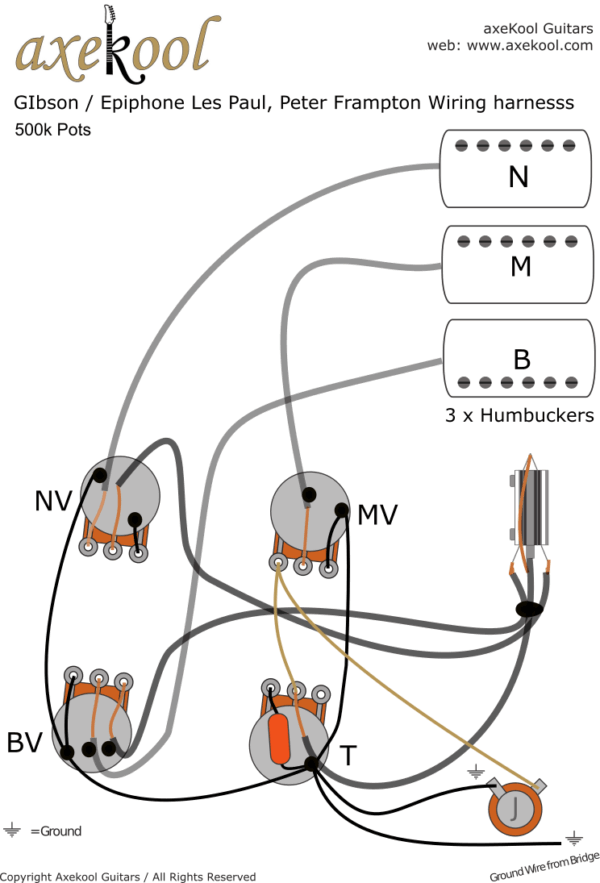

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Gibson & Epiphone Les Paul, Peter Frampton Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone Les Paul, Peter Frampton Vintage Wiring Harness is 48 hours.

Also Available
You may want to add a Jack socket and a Pre-Wired 3 Way Toggle Switch to complete the Harness.
