PRS 2 Pot Vintage Wiring Harness

£77.50£80.50

We build your PRS 2 Pot Vintage Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

SKU: N/A Categories: ,

Description

PRS 2 Pot Vintage Wiring Harness with Coil Split Option

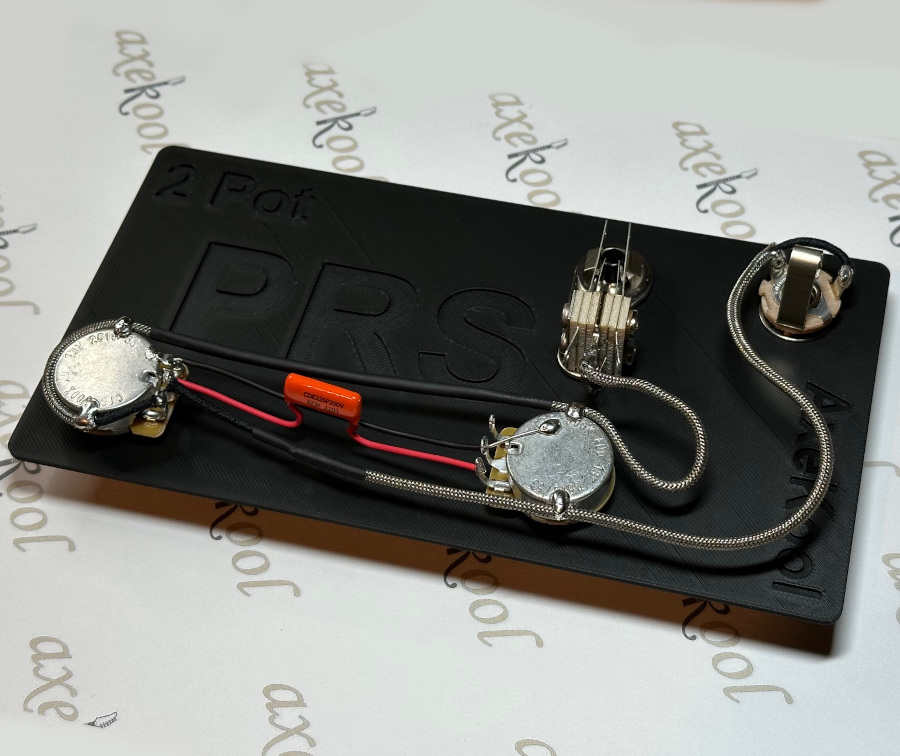

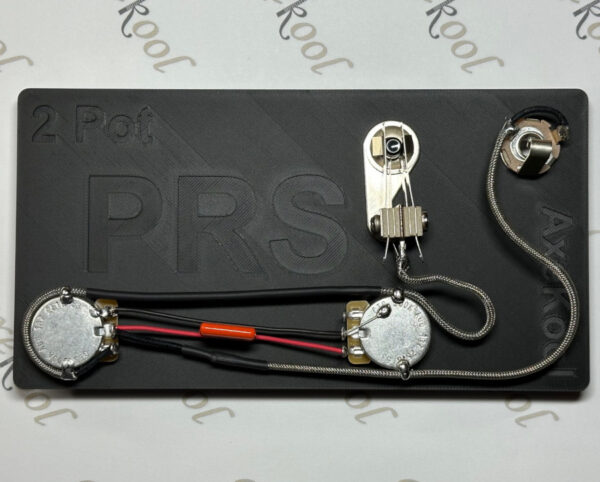

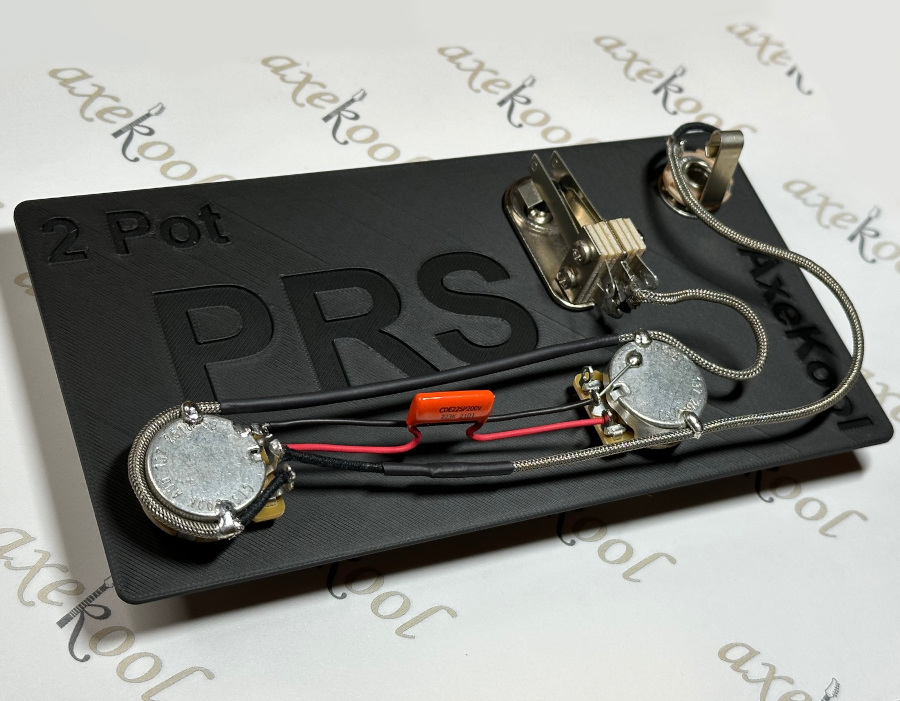

This pre-wired PRS 2 Pot Vintage Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our PRS 2 Pot Vintage Wiring Harness together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our PRS 2 Pot Vintage Wiring Harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 2, split shaft with option of master coil split.
Capacitor x 1, Size 0.022uF / Sprague Orange Drop or PIO Paper in Oil.
Switchcraft Right Angle Toggle 3 Way Switch with choice of colour tip: White, Cream or Black.
Switchcraft USA Jack Socket.
20AWG Tinned copper ground.
Gavitt USA made cloth covered 22AWG wire.
You are welcome to contact us with your custom requirements.

Controls
Master Volume (Option of Coil Split)
Master Tone

Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.

Will this fit my guitar?
Our pre-wired PRS 2 Pot Vintage Wiring Harness is wired to fit genuine PRS models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of volume to tone pot – 105mm.
Centre of tone pot to 3 Way Switch – 60mm.
Measurements can sometimes vary slightly on some PRS models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit.
If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

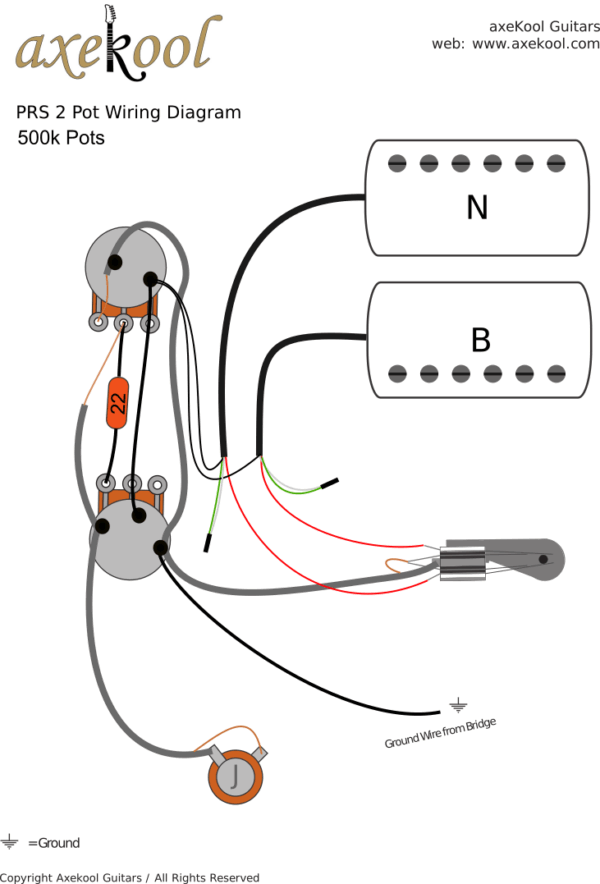

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your PRS 2 Pot Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a PRS 2 Pot Vintage Wiring Harness is 2-3 days.
