Epiphone Les Paul Special II Vintage Wiring Harness
£75.50
We build your Epiphone Les Paul Special II Vintage Style Wiring Harness to order using professional fully tested electrical components.
Includes wiring diagram & installation guide.
Description

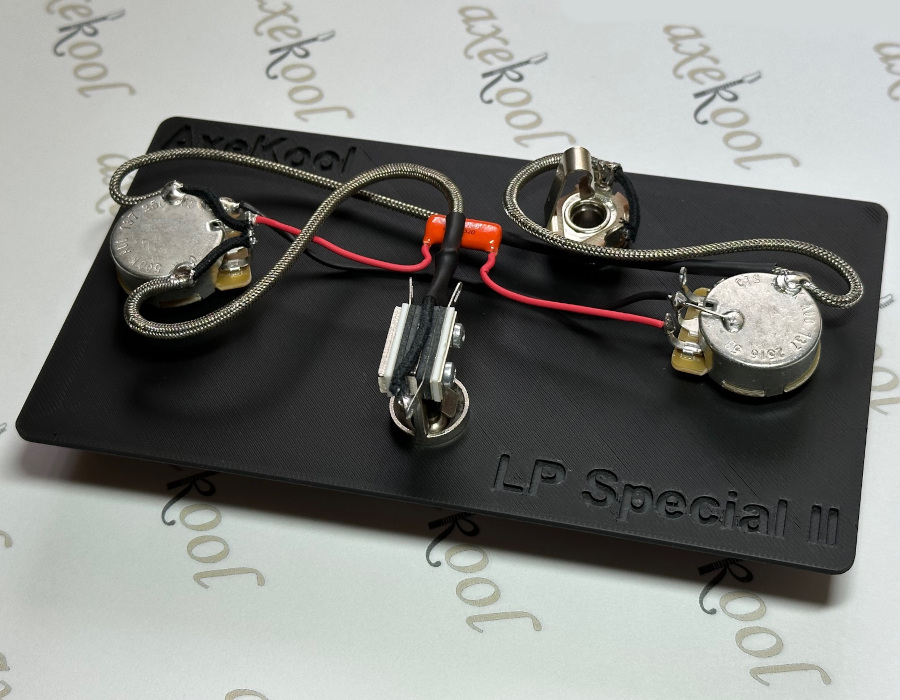

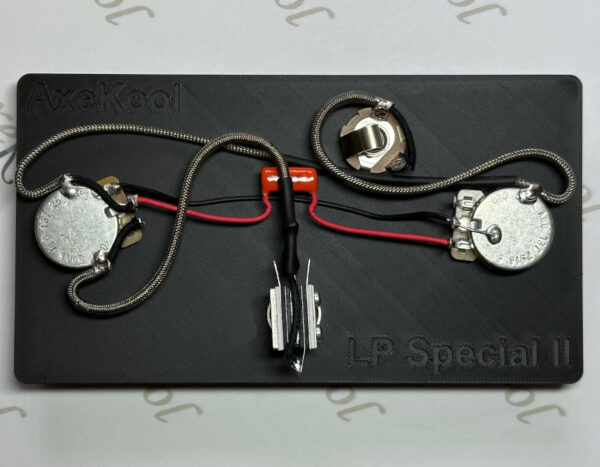

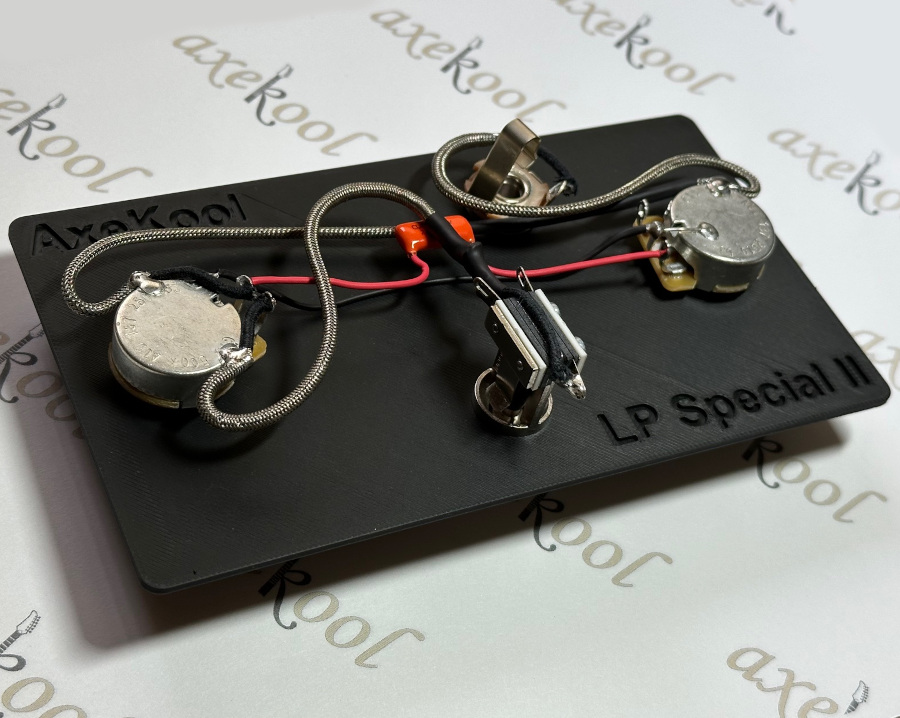

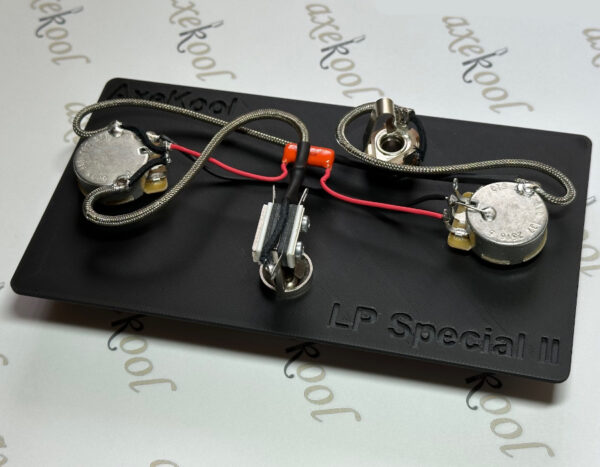

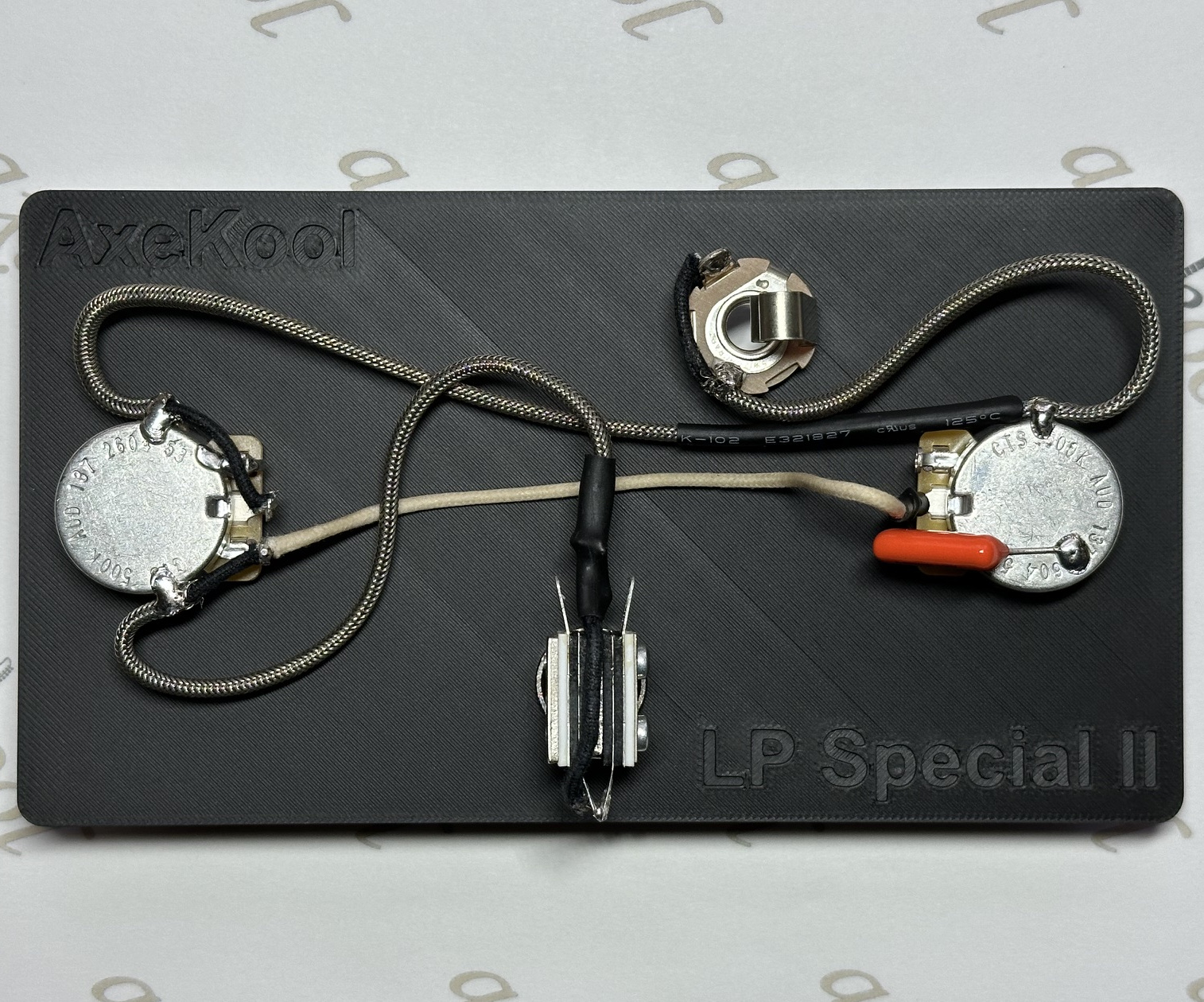

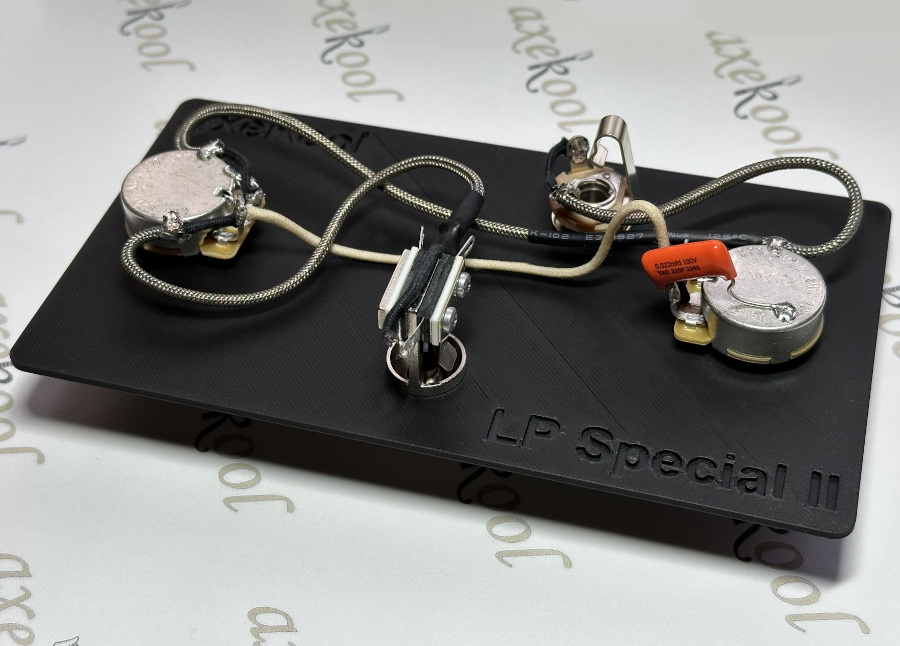

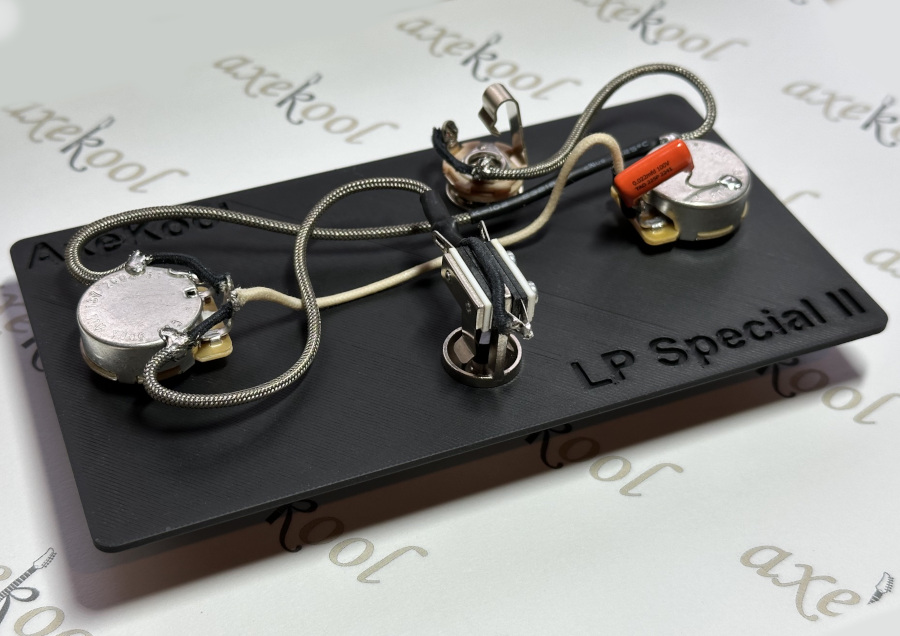

Epiphone Les Paul Special II Vintage Style Wiring Harness
This pre-wired Epiphone Les Paul Special II Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models. We take a massive amount of care and attention when putting our Epiphone Les Paul harnesses together. Everything is fully tested before being posted to you.
This is a Professional Les Paul wiring harness using the very best in components to enhance the quality of tone and sound output from your Epiphone guitar.
Read about our Vintage Wiring Harnesses Here. We use our Les Paul vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more Here.
Components
Premium 500k CTS Potentiometers x 2 split shaft with vintage audio taper
Switchcraft Toggle Switch – Choice of switch knob colour is included, Amber, Cream or Chrome.
Switchcraft USA Jack Socket.
Capacitor / 0.022uF Sprague Orange Drop.
Gavitt USA made braided wire.
Jack Socket and Pots supplied with Nut, Flat Washer & Locking Star Washer.
You are welcome to Contact Us with your custom requirements.
Controls
Master Volume Control.
Master Tone Control.
Switching
Position 1 – Bridge Pickup.
Position 2 – Bridge & Neck Pickup.
Position 3 – Neck Pickup.
Will this fit my guitar?
Our pre-wired Epiphone Les Paul Special II Wiring harness is wired to fit genuine Epiphone models. If installing into an imported model / DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.
Centre to centre measurements between components
Centre of volume pot to centre of switch – 60mm.
Centre of switch to centre of tone pot – 60mm.
Measurements can sometimes vary slightly on some Les Paul Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.
Installation, Documents & Support

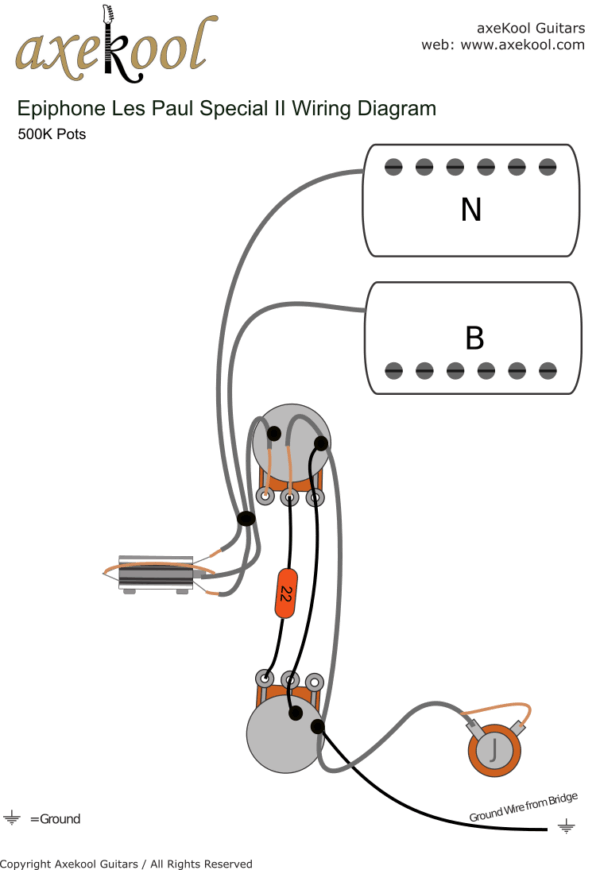

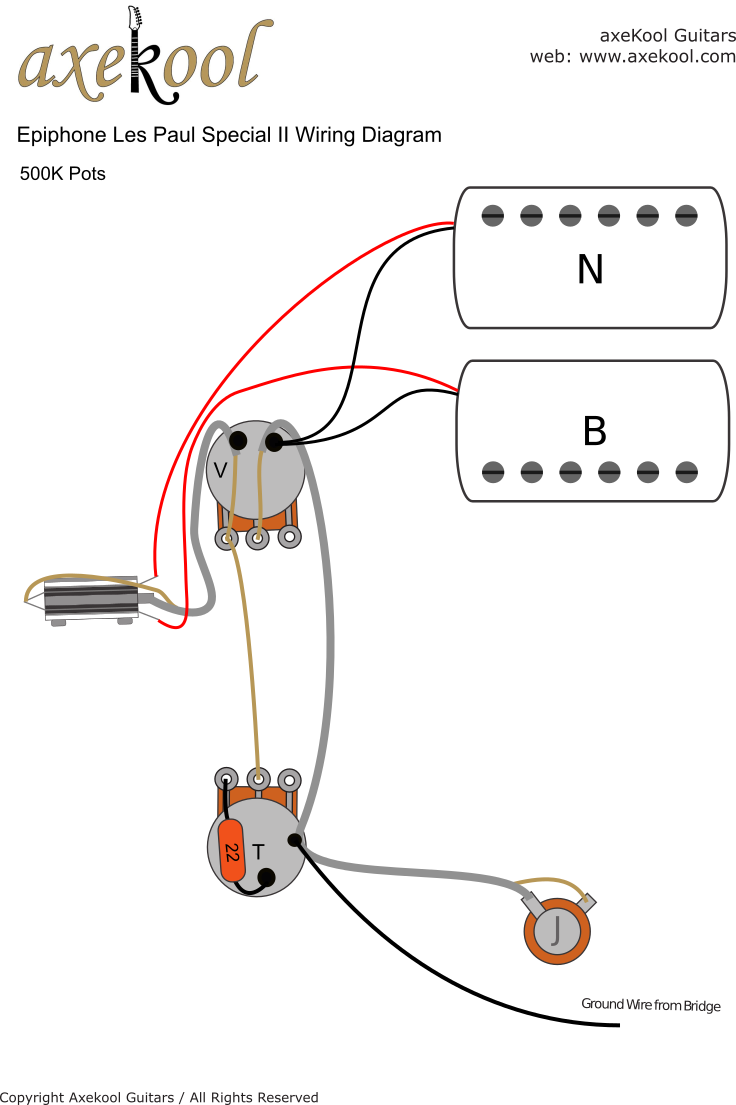

Please see our Support Page for wiring diagrams and fitting instructions.
We have made it as simple as possible to install your Epiphone Les Paul Special II Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram. We also offer full support should you need it.
Order Times
We make everything to order and the turnaround time for a Epiphone Les Paul Special II Vintage Wiring Harness is 48 hours.
