Gibson & Epiphone SG Junior Vintage Wiring Harness

£42.95£50.95

We build your Gibson & Epiphone SG Junior Vintage Style Wiring Harness to order using the very best fully tested electrical components.

Includes wiring diagram & installation guide.

FREE Post for the UK.
We also ship to the United States, Canada, Ireland, Australia, New Zealand and most of Europe.

Description

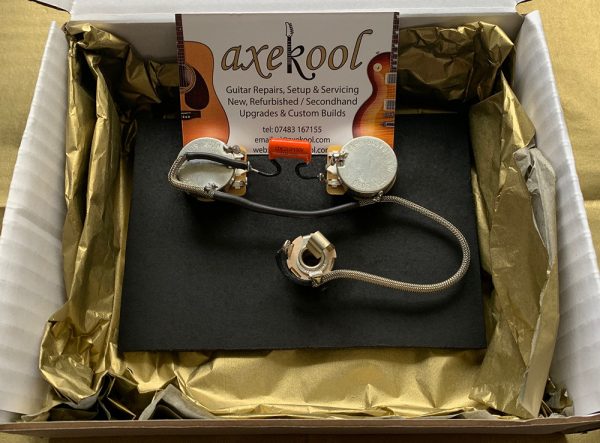

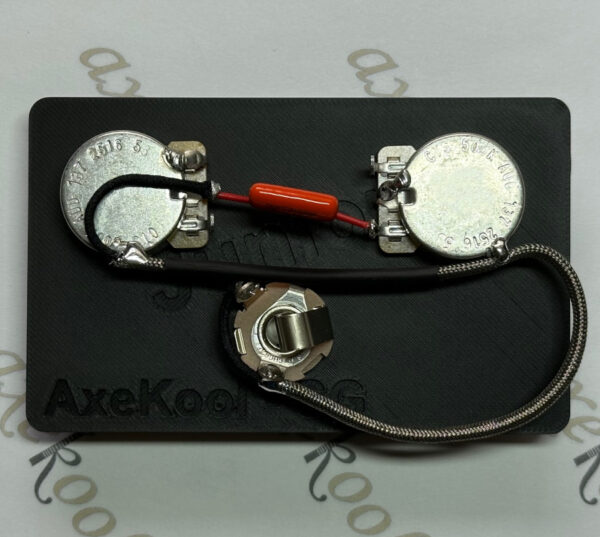

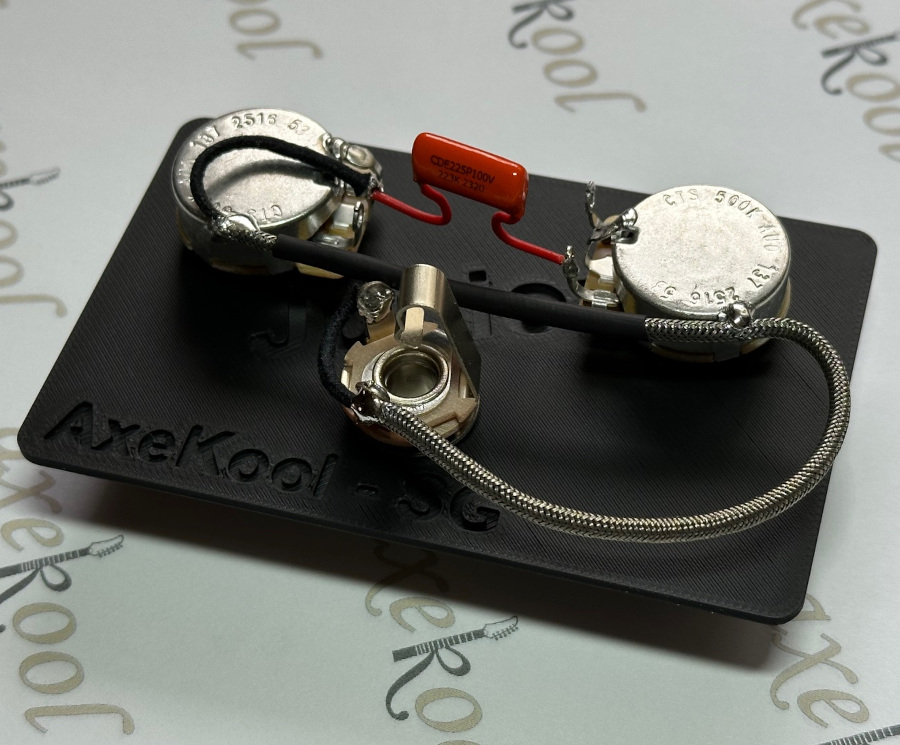

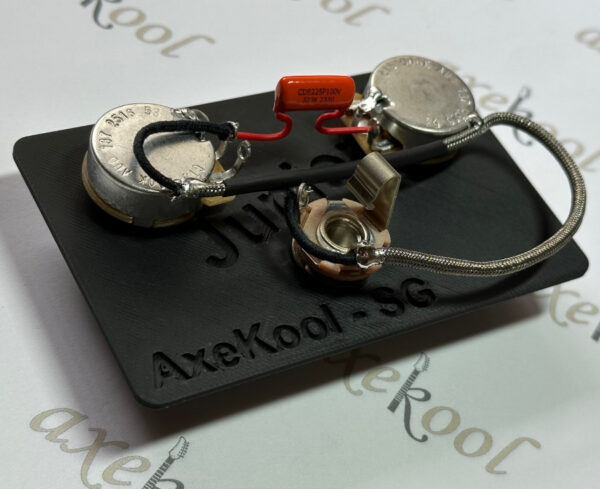

Gibson & Epiphone SG Junior Vintage Style Wiring Harness

This pre-wired Gibson & Epiphone SG Junior Vintage Style Wiring Harness is designed for replacing old electrics or upgrading the electronics of imported models or for use on DIY Kits. We take a massive amount of care and attention when putting our SG Junior harnesses together. Everything is fully tested before being posted to you.

Read about our Vintage Wiring Harnesses here >. We use our SG Junior vintage wiring harnesses in our workshop for our clients guitar upgrades and also for our Axeify guitar upgrading services, read more here >

Components
Premium 500k CTS Potentiometers x 2, short or long split shaft with vintage audio taper (fitted with additional nut for height adjustment on the long shaft pot).
Switchcraft USA Jack Socket.
Capacitor / 0.022uF Sprague Orange Drop or PIO Oil in Paper.
Gavitt USA made braided wire.
You are welcome to contact us with your custom requirements.

Controls
Master Volume Control.
Master Tone Control.

Will this fit my guitar?
Our pre-wired SG Junior Wiring harness is wired to fit all genuine SG Junior Gibson & Epiphone models. If installing into an imported model or a DIY guitar kit you will need to ensure the Potentiometer holes will take CTS pots (approx 10mm). This can be done using a round file or carefully with a 10mm drill.

Centre to centre measurements between components
Centre of volume pot to centre of tone pot – 63mm.
Measurements can sometimes vary slightly on some SG Junior Models, so we allow plenty of movement in wire lengths between components to allow for a comfortable fit. If your measurements are different from the above, please let us know and we will build your harness to your specifications.

Installation, Documents & Support

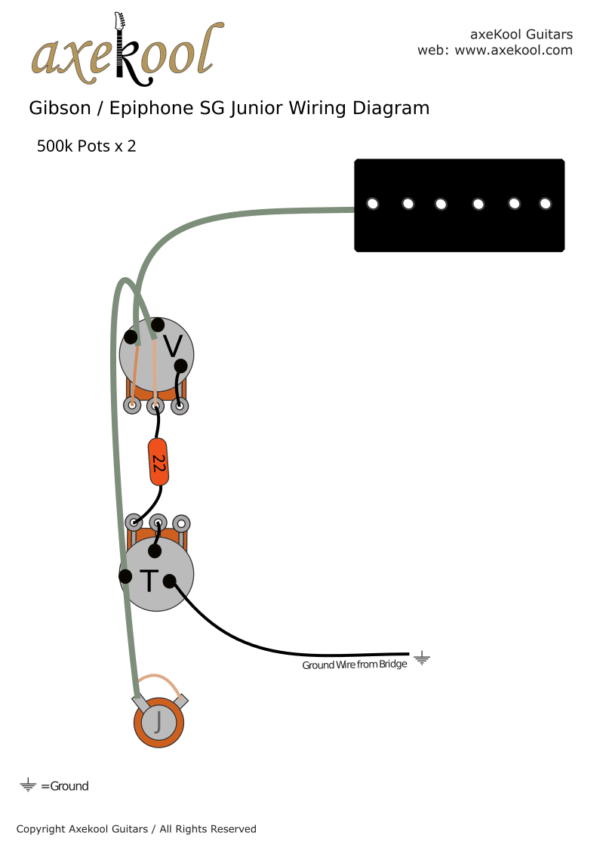

We have made it as simple as possible to install your Gibson & Epiphone SG Junior Vintage Wiring Harness with a fitting guide and simple to follow wiring diagram included with your purchase. We also offer full support should you need it.

Order Times
We make everything to order and the turnaround time for a Gibson & Epiphone SG Junior Vintage Wiring Harness is 48 hours.
